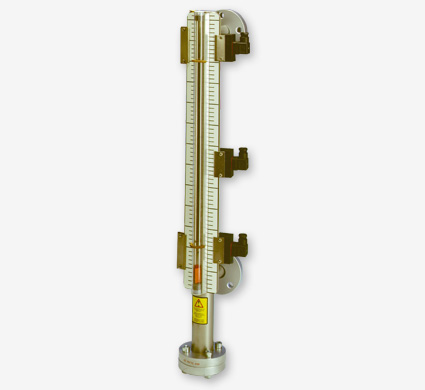

NS 25/15 AM-Atex, NS 25/25 AM-Atex

ATEX - application Zone 1 (cat. 2G), intrinsically safe as per EN 60079-11
Compact size
Variable connections
Visual display
Practice-oriented contacts
Sturdy design

Level switches for external installation are used to monitor and control liquid levels primarily in closed tanks. The lowest detectable level is located on the level of the top edge of the bottom connection.

Each AM switch is equipped with a display, which is even easy to see from various lines of sight. The level contacts can be infinitely adjusted on the scale plate. They are activated by the magnetic system integrated in the float. There is a large selection of contacts available for various applications. This series consists of simple electrical equipment. In the case of intrinsically safe connections as per EN 60079-11, the NS 25/15 (25) AM-Atex can be used in Zone 1 (group IIB, device category 2G) explosive areas; this also applies to the inner zone of the tank. The level switches are classified into temperature class T4.
