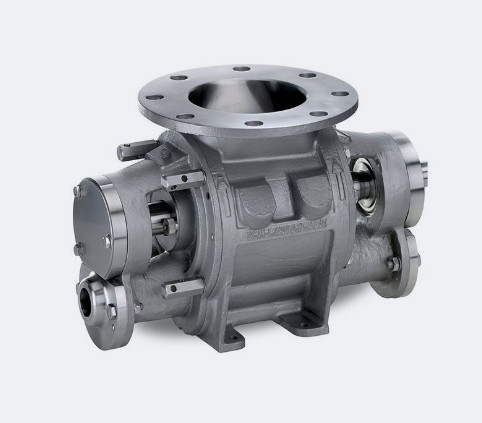

AIR LOCK VALVE BL/BXL/BXXL DMN-WESTINGHOUSE

RV
AL 150 2 : AL - High duty airlock
For SHM Line (03MC01-02MC03 )
Rotary valve
Description AL 150 2 : AL - High duty airlock
Customer specification
Product Certification Europe [CE]
Product specification
Product temperature [°C] 75
Country of destination Vietnam
Industry Food
Product name Not in table
Product name [Free text] Black pepper powder
Average Bulk Density [kg/m3] 400.0
Product size Fine - 6mm Mesh and under
Flowability
Abrasive
Corrosive
Sticky No
Fluidising No
Hygroscopic No
System description
Application Pneumatic conveying
Valve position Under silo
Capacity [ton/hr] 1.000
Filling efficiency [%] 70
Pressure inlet [barg] 1.000
Pressure outlet [barg] 1.000
Pressure difference [barg] 0.000
Ambient temperature Min. [°C] 30
Ambient temperature Max. [°C] 40
Explosive Atmosphere
Explosive Atmosphere No
Hygienic Design
EC1935/2004 Yes
Hygienic Design No
Rotary valve specification
Type AL - High duty airlock
Size 150
Execution 2 - Stainless steel
Body and Cover
Connection Round flange DN
Flange hole pattern Drilled DIN PN10
Material body and end covers Stainless steel 316 (DIN 1.4408)
Bearing Outboard ball bearings sealed for life
Vent holes Vent holes drilled including plugs
Earthing lug Including earthing lug M10 on in- and outlet flange
Rotor
Rotor 9 Adjustable blades - Stainless steel
Capacity at 100% filling [l/rev] 2.50
Blades
Rotor blades Stainless steel replaceable
Chamfering option Chamfering on three sides
Seal
Shaft sealing Air purge with Teadit 2005 FDA 1935/2004 packing
Air regulator set Pressure regulator/filterset *FESTO 24VDC
Drive
Calculated rotor speed [rpm] 24
Rotor speed [rpm] 24
Drive execution Chain Drive
Voltage [V] 220D/380Y 50Hz
Frequency Inverter operation 10-60Hz
Protection class [IP] 65
Thermal class [ISO] F
Drive speed [rpm] 25
Drive SEW R47DRN80MK4/TF IE3 0.55kW PTC M5 180/2 25/31rpm 50/60Hz
Gearmotor options Food grade oil NSF-H1 SEW
Stainless steel parts Motor base plate and Chain guard Stainless steel
Painting
Paint drive RAL 9006 colour drive DMN system A - Standard C1
Packaging
Packaging Pallet box - Individual packaging
Documentation
Standard language English
Base Documents Rotary valve Installation and Safety instructions
Spare part list
Parts list
Operating instruction
Declaration of conformity
Declaration of Compliance 1935-2004
Accessories
Flange gasket Accessories Flange gasket white neoprene Blanca 2 pieces Round

RV
AXL 200 2 : AXL - High duty airlock
Enlarged inlet
For MPE line Rotary Valve 2
Rotary valve
Description AXL 200 2 : AXL - High duty airlock Enlarged inlet
Customer specification
Product Certification Europe [CE]
Product specification
Product temperature [°C] 75
Country of destination Vietnam
Industry Food
Product name Not in table
Product name [Free text] Black pepper powder
Average Bulk Density [kg/m3] 400.0
Product size Fine - 6mm Mesh and under
Flowability
Abrasive
Corrosive
Sticky No
Fluidising No
Hygroscopic No
System description
Application Pneumatic conveying
Valve position Under silo
Capacity [ton/hr] 1.500
Filling efficiency [%] 70
Pressure inlet [barg] 1.000
Pressure outlet [barg] 1.000
Pressure difference [barg] 0.000
Ambient temperature Min. [°C] 30
Ambient temperature Max. [°C] 40
Explosive Atmosphere
Explosive Atmosphere No
Hygienic Design
EC1935/2004 Yes
Hygienic Design No
Rotary valve specification
Type AXL - High duty airlock Enlarged inlet
Size 200
Execution 2 - Stainless steel
Body and Cover
Connection Round flange DN
Flange hole pattern Drilled DIN PN10
Material body and end covers Stainless steel 316 (DIN 1.4408)
Bearing Outboard ball bearings sealed for life
Vent holes Vent holes drilled including plugs
Earthing lug Including earthing lug M10 on in- and outlet flange
Rotor
Rotor 9 Adjustable blades - Stainless steel
Capacity at 100% filling [l/rev] 5.50
Blades
Rotor blades Stainless steel replaceable
Chamfering option Chamfering on three sides
Seal
Shaft sealing Air purge with Teadit 2005 FDA 1935/2004 packing
Air regulator set Pressure regulator/filterset *FESTO 24VDC
Drive
Calculated rotor speed [rpm] 16
Rotor speed [rpm] 19
Drive execution Direct Drive with Coupling
Voltage [V] 220D/380Y 50Hz
Frequency Inverter operation 10-60Hz
Protection class [IP] 65
Thermal class [ISO] F
Drive speed [rpm] 19
Drive SEW RF47DRN80MK4/TF IE3 0.55kW PTC M3 90/X 19/23rpm 50/60Hz
Gearmotor options Food grade oil NSF-H1 SEW
Stainless steel parts Connection piece drive / end cover stainless steel
Painting
Paint drive RAL 9006 colour drive DMN system A - Standard C1
Packaging
Packaging Pallet box - Individual packaging
Documentation
Standard language English
Base Documents Rotary valve Installation and Safety instructions
Spare part list
Parts list
Operating instruction
Declaration of conformity
Declaration of Compliance 1935-2004
Accessories
Flange gasket Accessories Flange gasket white neoprene Blanca 2 pieces Round
