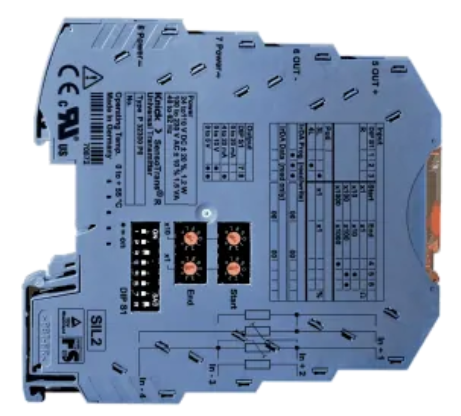

Bộ chuyển đổi nhiệt độ P 32100 KNICK | KNICK VIETNAM

CATALOG:

Facts

• Universal usability from simple to challenging measurement tasks with all known temperature sensors
• Convenient setting of all parameters via IrDA interface
  • Uncomplicated, menu-guided adjustment also “on site” including archiving of configuration data
• Intuitive configuration of the basic parameters
  • Easy, without tools, using 4 rotary and 8 DIP switches
• Calibrated range selection
  • No complicated adjusting
• Automatic detection of the sensor connection (2-, 3- or 4-wire)
• Protective separation according to EN 61140
  • Protection of maintenance staff and subsequent devices against excessively high voltages up to 300 V AC/DC
• Functional safety up to SIL 2 (up to SIL 3 in case of redundant configuration) with TÜV certificate
  • Systematically developed according to EN 61508
• High accuracy due to innovative circuit design
• Minimum space consumption in the enclosure
  • Modular housing: just 6 mm wide
  • More transmitters per meter of DIN rail
• Low-cost assembly
  • Quick mounting, convenient connection of power supply through DIN rail bus connectors
    (in case of 24 V DC power supply)
