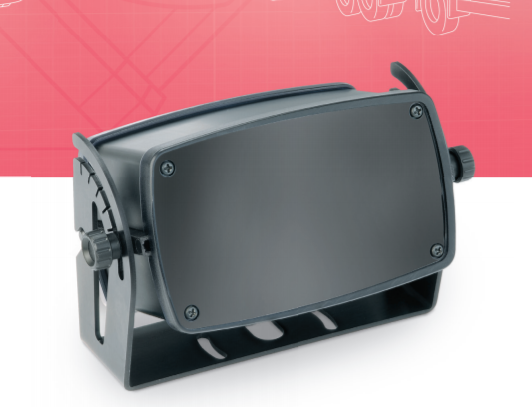

Cảm biến phát hiện vật Herkules 2E BIRCHER | BIRCHER VIETNAM

CATALOG:

Technical data
Mechanical data
Mounting height 2.0 to 7.0 m
Connection type Cable 10 m,
6 x AWG26 (0.14 mm2)
Housing material Black anodised aluminium,
Polycarbonate cover
Dimensions 134 × 82 × 75 mm
Weight 820 g incl. cable
Technological data
Technology Doppler radar with
planar module
Transmission frequency 24.05 –24.25 GHz
Output < 20 dBm
Max. detection velocity 25 km/h for vehicles
Electrical data
Operating voltage 10–28 VAC, 12–36 VDC
Operating current Max. 75 mA
Outputs Relay
Switching voltage Max. 48 VAC/DC
Switching current Max. 0.5 A AC
Ambient conditions
Protection class IP65
(EN 60529)
Temperature range –30°C to +60°C
Air humidity 0% to 95% relative,
without condensation
Standards
Certifications FCC / IC / CE
Suitable for the EU, EFTA, US, CA
following countries
