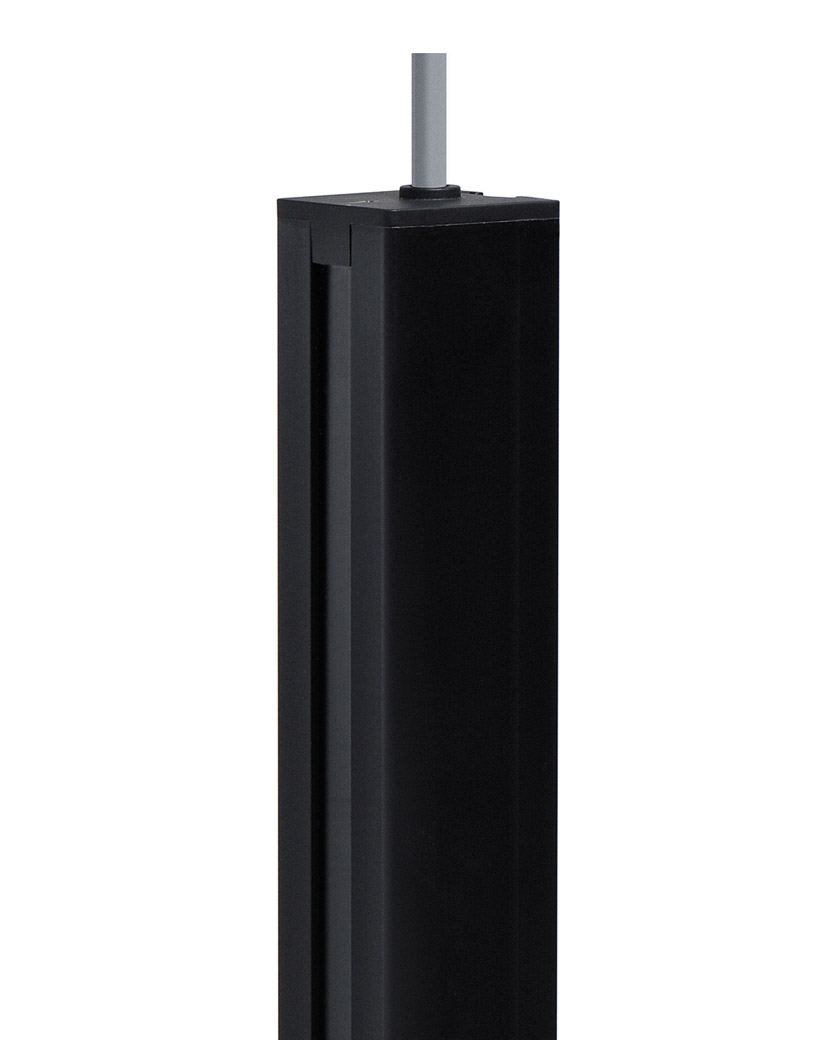

Cảm biến quang SS 02 SPACESCAN TELCO

Operation Mode

Thru Beam

Function

Receiver

Supply Voltage

18 - 30 V dc

Active Height

225 mm

Channel Spacing

20 mm

Sensing Range

10 m

Output

2 x PNP + Analog. (RS-485)

Output Status

N.C. / N.O.

Housing

33 x 36 mm

Length

300 mm

Connection

0.5 m cable with 12 pin, M12 plug

Features

RS-485 communication port

Supply Voltage

18 - 30 V dc

Reverse Polarity Protected

Yes

Short Circuit Protected

Yes

Current Consumption

75 mA

Output Type

2 x Digital Output (Transistor) PNP
Analogue Out. 4-20 mA / 0-10 V (2-wires)

Output Rating

Digital Output: 100 mA
Analogue Output: Current <600 Ohm - Voltage >1kOhm

Number of Channels

12

Number of Cross Scanning Beams

34

Number of Parallel Beams

12

Distance, Beams Pinch Point

10 mm

Response Time

Beams: Parallel 6,6 ms / Cross 6,1 ms

Power On Indicator

Green LED

Output Indicator

Yellow LED

System Status Indicator

Red LED

Profile Dimensions (w x d)

33 x 36 mm

Housing Material, Front Lens

Polycarbonate

Housing Material, Profile

Aluminium (black anodised)

Cable

12 x 0,2 mm²

Cable Sleeve

PVC Ø 5,9 mm

Vibration

10 - 55 Hz, 0,5 mm

Shock

30 g

Operation Temperature

-30 to +60 °C

Storage Temperature

-40 to +80 °C

Sealing Class

IP 67

Light Immunity 5˚

> 100 000 lux
