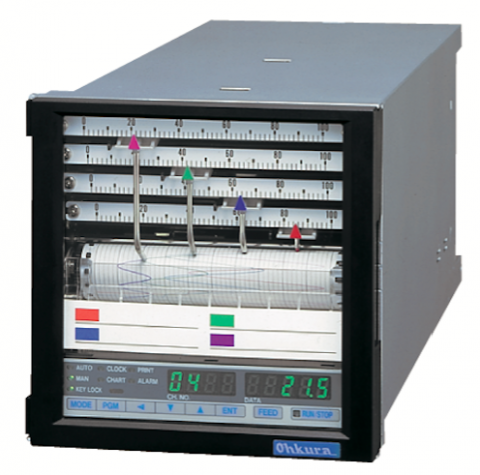

Bộ ghi dữ liệu RM10G|RM10N OHKURA-VIETNAM

THÔNG SỐ KỸ THUẬT:

Number of inputs: 1,2,3,4 pen, 6 dot point.
Type of input:
DC Voltage: 4mVDC min., 20VDC max.
Direct thermocouple: K, T, J, E, B, S, R, G, C, N,
PR40- 20,PLII,U,L,Au-Fe
RTD: Pt100Ω,Pt50Ω,JPt100Ω,Cu10Ω (at 0°C),
Cu10Ω (at 25Ω)
Current: 4 ~ 20mA
Conductivity: 100μS/m ~ 2000mS/m
Recording width: 100mm calibrated
Recording accuracy: ± 0.5% max.
Open input protection (option): Up scale with mV or TC
input
Chart speed: 1, 2, 3 & 4 pen model; 1 ~ 3600mm/h
6 point model; 1 ~ 1800mm/h
Chart paper: Fold chart standard, 12m long, 114mm width
Data print color: Purple (Red on alarm:dot type)
Dot print interval: 5 s/ch.
Input sampling: 120 msec. in pen model, 5 s/ch in dot
point model.
Cartridge pen: Disposable felt pen
Print head: Pen models; Wire dot 1 color ribbon cartridge,
Dot point models; 6 color ribbon cartridge
Alarm: 6 Set points per channel
Alarm output (option): 2 relays drive per setting. Form-C
250VAC 3A /125VDC 0.5A /30VDC 3A max.,
Hysteresis 0.5 ± 0.2%, Setting accuracy ± 0.5%
Input impedance:10MΩ min. In mV/TC input. 200kΩ min.
In mV/TC Input with burn-out, 1MΩ min.
In Volt Input and 100Ω min. In mA Input
Source impedance: 10kΩ max. in mV/TC input, 200Ω
max. in mV/TC Input with burn-out, 1kΩ
max. In Volt input and 10Ω max. per wire in RTD input.
CMRR: 140dB min. in 50/60 ± 0.5Hz
NMRR: 60dB min. in 50/60 ± 0.5Hz
Isolation resistance: Input/ground 500VDC, 20MΩ min.
Dielectric strength: Power supply voltage/ ground 2000VAC,
1 minute duration. input/ground 500VAC, 1 minute
duration
Power supply voltage: 85 ~ 264VAC, 45 ~ 65Hz ± 5%
Allowable instant power failure: 50ms max.
Power consumption: 60VA max.
Vibration resistance: 1m/s2 max., 10 ~ 60Hz
Shock resistance: 2m/s2 max.
Operating conditions: -5 ~ 50°C. 35 ~ 85%RH
Dimensions: RM10G; 144(w) x 144(h) x 430(d) mm
RM10N; 150(w) x 168(h) x 340(d) mm
Case structure: Dust-proof
Mounting: Panel-mount
TYPE G,N; Allowable backward inclination : 30°
Material: Case
TYPE G ; Steel plate
TYPE N ; Aluminum die casting
Door----TYPE G; PC resin
TYPE N; Aluminum die casting
Color: Case --- Metallic silver
Door frame --- Black(Standard)
