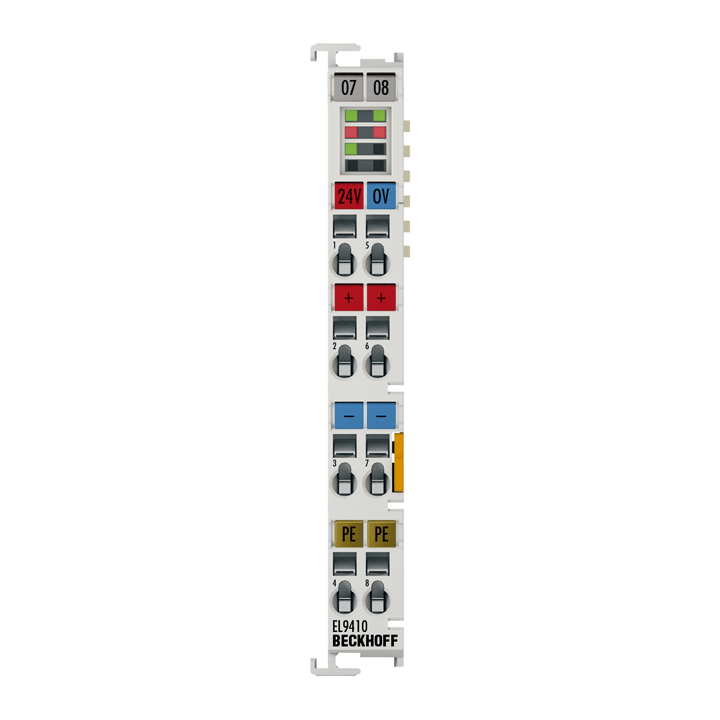

EL9410 BECKHOFF Power supply terminal for E-bus

Technology

power supply terminal

Short-circuit proof

yes

Input voltage

24 V DC (-15 %/+20 %)

Input current

typ. 70 mA + (E-bus/4)

Output voltage

5 V for E-bus supply

Output current

2 A

Current consumption E-bus

–

Electrical isolation

500 V (E-bus/field potential)

Power contacts

max. 24 V DC/max. 10 A

Diagnostics in the process image

yes

Special features

standard EL supply

Weight

approx. 65 g

Operating/storage temperature

0…+55 °C/-25…+85 °C

Relative humidity

95 %, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos.

IP20/variable

Pluggable wiring

for all ESxxxx terminals

Approvals/markings

CE, UL, ATEX

Ex marking

II 3 G Ex nA IIC T4 Gc
