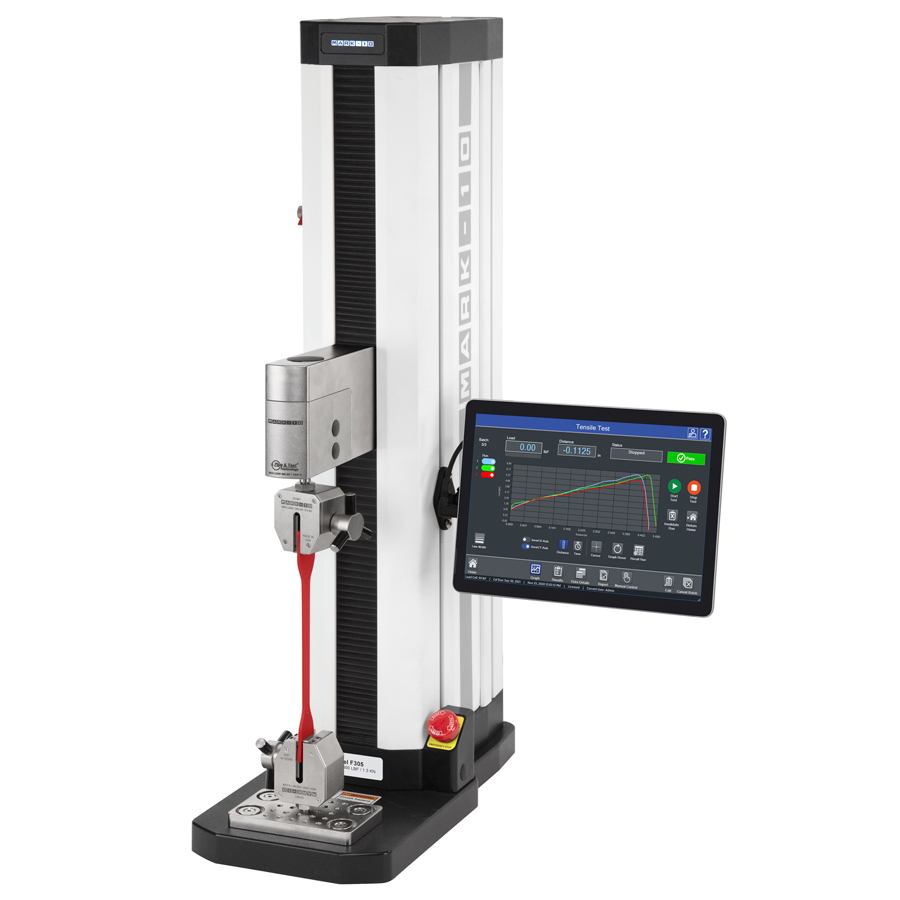

F105/F305/F505/F505H Máy kiểm tra độ bền kéo bao bì Mark-10

F105

F305

F505

F505H

Load capacity*:

100 lbF
[0.5 kN]

300 lbF
[1.3 kN]

500 lbF
[2.2 kN]

Maximum travel:

18.0 in
[457 mm]

Speed range:

0.02 - 45 in/min
[0.5 - 1,100 mm/min]

Load accuracy
(% of full scale)

• Test frame: ±0.1%
• Force sensor alone: Series FS05: ±0.1% | Series R07: ±0.15%

Load sampling rate:

20,000 Hz

Data acquisition rate:

1,000 Hz

Speed accuracy:

±0.2% of setting, virtually no variation with load

Distance accuracy:

±0.002 in [0.05 mm], factory-compensated at up to full load

Distance resolution:

0.0005 in [0.01 mm]

Limit switch repeatability:

±0.001 in [0.03 mm]

Overload protection:

Motor stops at 120% of full scale of the force sensor

Power:

Universal input 100-240 VAC, 50/60 Hz, 120W

Fuse type:

1.2 A, 250V, 3AG, SLO BLO

Weight (test frame only):

60 lb
[27 kg]

70 lb
[32 kg]

Shipping weight:

75 lb
[34 kg]

85 lb
[39 kg]

Environmental conditions:

• Indoor use only
• Up to 6,500 ft [2,000 m] above sea level
• Temperature range: 40 - 95°F [5 - 35°C]
• Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
• Mains supply voltage fluctuations up to ±10 % of the nominal voltage
• Transient overvoltages up to the levels of Overvoltage Category II
• Use in environments up to Pollution Degree 2

Conformance:

CE
