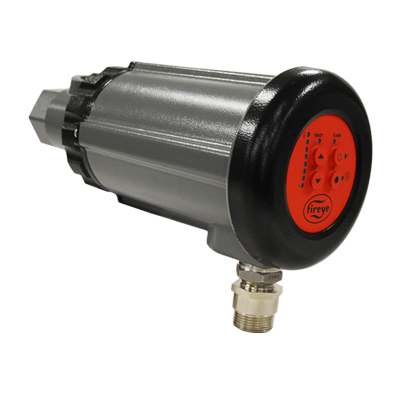

Thiết bị phát hiện ngọn lửa 85UVF, 85IRF Fireye - Fireye Vietnam

Thiết bị phát hiện ngọn lửa 85UVF, 85IRF Fireye - Fireye Vietnam
XUẤT XỨ :

Đức

TÌNH TRẠNG :

Mới 100%

MÔ TẢ :

Đại lý Fireye tại Việt Nam

THÀNH PHẦN :

Cảm biến ngọn lửa

MÃ SẢN PHẨM:

85UVF-85IRF

Công Ty Tăng Minh Phát - Đại lý phân phối thiết bị phát hiện ngọn lửa Fireye, cảm biến ngọn lửa Fireye, thiết bị phát hiện ngọn lửa bằng tia hồng ngoại, thiết bị phát hiện ngọn lửa bằng tia tử ngoại ( tia UV) - Fireye Vietnam

Thông Tin Sản Phẩm
Đánh Giá

Thiết bị phát hiện ngọn lửa 85UVF Fireye - Thiết bị phát hiện ngọn lửa 85IRF Fireye - Fireye Vietnam

The Fireye Phoenix Series 2 type 85UVF/IRF flame scanners are microprocessor based devices utilizing a solid state flame detection sensor. The Phoenix flame scanners incorporate an internal flame relay with automatically set ON/OFF thresholds, thereby eliminating the need for a remote flame amplifier or flame switch.

Phoenix scanners detect the amplitude of the modulations (the flame “flicker”) that occur within the targeted flame, over a wide frequency. During the scanner setup procedure, the amplitudes of the target flame are automatically stored by the flame scanner, together with optimum ON/OFF criteria. The appropriate sensor gain is automatically selected. Phoenix scanners incorporate full self-diagnostics and electronic self-checking.

The Phoenix 85UVF/IRF is available in multiple models differentiated by spectral range, levels of hazardous area certifications and agency approvals. Refer to Table 1 on page 3 for an overview of model numbers versus product certifications.

The Phoenix 85UVF/IRF flame scanner is powered by 24Vdc. Electrical connection is via an 8-pin electrical quick-disconnect (QD). An analog 4 to 20mA output of flame strength is standard.

Note: The Phoenix QD models with electrical quick-disconnect have replaced the original models equipped with ten feet of captive cable.

The QD models (with 59-546-x cables) are suitable for use in Class I Division 2 hazardous areas, thereby eliminating the need for “EX” models. The “CEX” models remain unchanged for use in Ex II 2 G/D hazardous areas.

CÁC ỨNG DỤNG TIÊU BIỂU :

Duct Burners
Industrial Gas Burners
Refinery Applications
Low NOx Burners
Waste Gas Units
Incinerators

									ATEX / IECEx
AGENCY APPROVALS (note 1)									ATEX / IECEx
SCANNER MODEL	FM	UL C/US	CE	CLASS I DIV 2		NEMA 4X	IP66	DVGW	DIN CERTCO	Ex II 3 G	Ex II 2G Ex db IIC T6
SCANNER MODEL	FM	UL C/US	CE	CLASS I DIV 2		NEMA 4X	IP66	DVGW	DIN CERTCO	Ex ic nA nC IIC T4 Gc	Ex II 2D Ex tb IIIC T85oC
85UVF1A-1QD	X	X	X	X	X	X	X	X	X	X
85UVF1-1CEX		X	X		X		X	X	X		X
85UVF1-1CEX-K3		X	X		X		X	X	X		X
85IRF1A-1QD	X	X	X	X	X	X	X	X	X	X
85IRF1-1CEX		X	X		X		X	X	X		X
85IRF1A-2QD	X	X	X	X	X	X	X	X	X	X
85UVF1A-2QD	X	X	X	X	X	X	X	X	X	X
85UVF1A-1QDK3	X	X	X	X	X	X	X	X	X	X
85UVF1A-2QDK3	X	X	X	X	X	X	X	X	X	X
85IRF4A-1QDWR	X	X	X	X	X	X	X			X
85IRF4A-2QDWR	X	X	X	X	X	X	X			X
85UVF4A-1QDWR	X	X	X	X	X	X	X			X
85UVF4A-1QDK3WR	X	X	X	X	X	X	X			X
85UVF4A-2QDWR	X	X	X	X	X	X	X			X
85UVF4A-2QDK3WR	X	X	X	X	X	X	X			X

THÔNG TIN KỸ THUẬT :

MECHANICAL, BASIC MODELS (-1QD) and FIBER OPTIC MODELS (-2QD)

Housing Material: Cast aluminum with gray polyester powder coat.

Ingress Protection: IP66 with 0.4 joule impact rating.

Scanner Weight: 5.90 lbs. (2.69kg)

Mounting Flange: P/N 60-2919-1, 1" NPT female pipe mount with 3/8” NPT female cooling air connection. Contains an integral heat-insulating female thread insert.

(Ordered Separately) : P/N 60-2919-2, 1" BSP female pipe mount with 3/8” BSP female cooling air connection. Contains an integral heat-insulating female thread insert.

P/N 60-2692, 1" NPT female pipe mount with 3/8" NPT female cooling air connection. (Without heat-insulating thread insert)

P/N 60-2693, 1" BSP female pipe mount with 3/8" BSP female cooling air connection. (Without heat-insulating thread insert)

ENVIRONMENTAL

Temperature Rating: -40°F/-40°C to 150°F/+65°C ambient; -40°F/-40°C to 180 °F/82°C scanner internal temperature.

Humidity: 0% to 95% relative humidity, non-condensing

Pollution Degree: 2

Overvoltage Category: III

COOLING/ PURGE AIR REQUIREMENTS:

Source: Clean, dry, cool

Volume: 4 SCFM (113 l/min) at 3/8" threaded mounting flange, or 1 inch “Y” fitting, mounted on scanner sight pipe. Temperature near the upper limit of the scanner operating range and/or use with dirty/dusty fuels may require up to 15 SCFM (425 l/min).

Pressure: Adequate to overcome furnace or windbox

ELECTRICAL

Input Power: 24 Vdc nominal, supply current 200 mA

Electrical Connection: 8-PIN quick-disconnect

Relay Outputs: FLAME RELAY, SPST (N.O.) FAULT RELAY, SPST (N.C.)

Contact Rating: Minimum: 10 mA @ 5 Vdc

Maximum: 2 A @ 30 Vdc, 2 A @ 230 Vac (Resistive load)

Analog Output: Optically isolated 4 to 20mA dc current referenced to 24 Vdc common, maximum connected load: 750 Ohms. Fireye recommends the 60-2685- X 24 Vdc power supply for best performance and for a SELV rating of the 4-20mA analog output leads.

Status Indication: Multiple LED indication for flame signal strength, flame relay, ready, target, background select and fault codes

THÔNG TIN BẢN VẼ :

ThiÃªÌt biÌ£ phaÌt hiÃªÌ£n ngoÌ£n lÆ°Ìa 85UVF, 85IRF Fireye - Fireye Vietnam
