Specifications

Service:

Clean air and non-combustible, compatible gases.

Wetted Materials:

Consult factory.

Range:

1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s); field selectable.

Accuracy:

±(5% of reading + 0.2 m/s) or ±(3% of reading + 0.2 m/s) @ standard conditions, depending on model.

Temperature Limits:

32 to 122°F (0 to 50°C).

Power Requirements:

24 VDC ±20% or 24 VAC ±20%.

Humidity Limits.:

5 to 95% RH, non-condensing.

Output Signals:

4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC.

Response Time (90%):

10 s, typical.

Zero & Span Adjustments:

Digital push buttons.

Output Load Resistance:

Current output: 0 to 1100 Ω max.; Voltage output: Minimum load resistance 1 kΩ.

Current Consumption:

60 mA max.

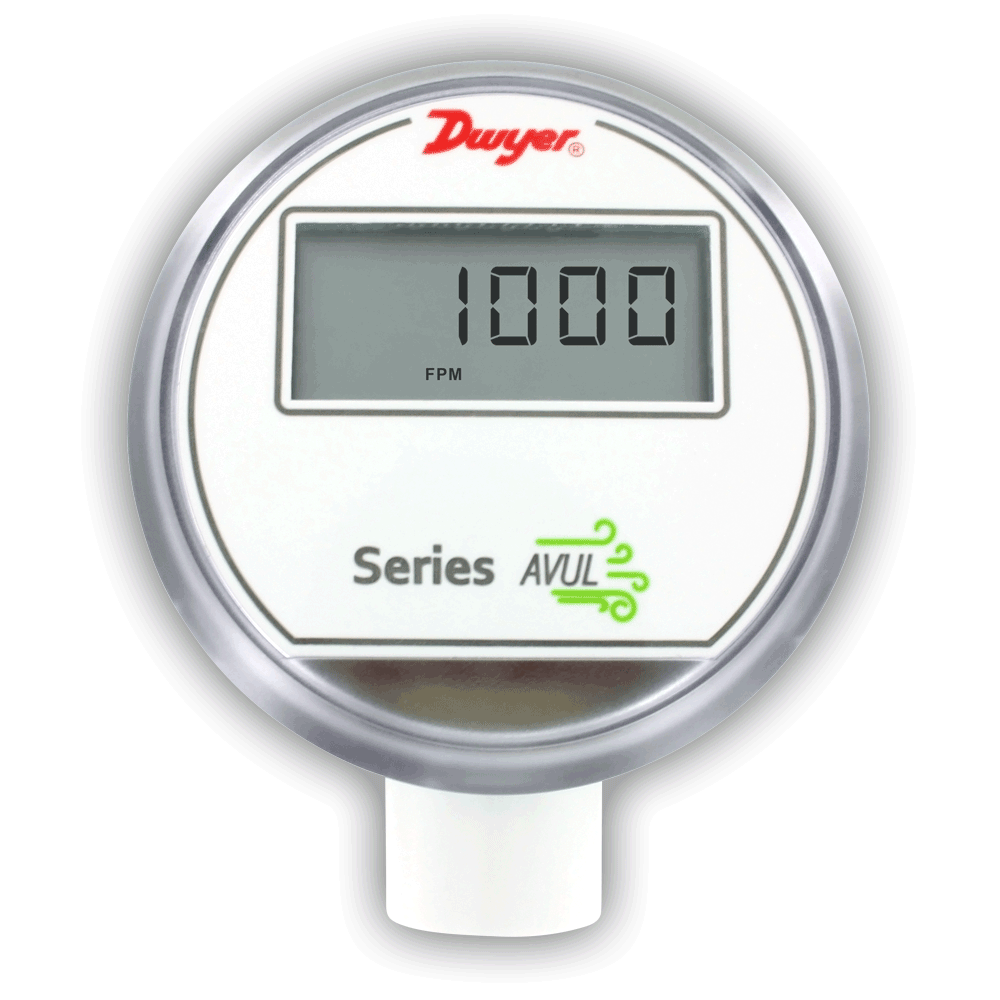

Display:

5 digit LCD (optional).

Electrical Connections:

Analog; power and output: four wire removable European style terminal block for 16 to 26 AWG.

Communication:

Connections: BACnet MS/TP or Modbus® RTU/ASCII: three wire removable European style terminal block for 16 to 26 AWG; Supported baud rates: 9600, 19200, 38400, 57600, 76800, 115200. (optional)

Device Load:

1/8th unit load.

Electrical Entry:

1/2" NPS thread. Accessory: Cable gland for 5 to 10 mm diameter cable, A-151.

Enclosure Rating:

NEMA 4X (IP66).

Mounting Orientation:

Flow direction must be parallel to the sensor tip.

Weight:

6.0 oz (160 g).

Agency Approval:

BTL, CE.
