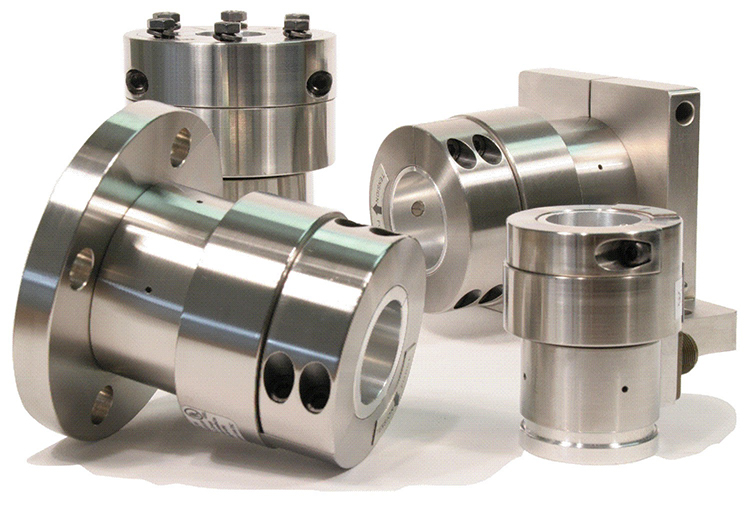

Đầu dò lực căng Model C | Dover Flexo Electronics Viet Nam

SPECIFICATIONS:

ELECTRICAL
Excitation: 5 Vdc, regulated (10Vdc with XR)
Output: 250mVdc, nominal, at 5V excitation
(500mV at 10V excitation with XR)
Strain Gage Resistance: 100 ohms, nominal
Non-Repeatability: ±1/4% Full Span (FS)
Combined Non-Linearity and Hysteresis: ±1/2% (FS)
Temperature Range: -10°F to 200°F (-23°C to 93°C)
Temperature Coefficient: 0.02% FS per °F, typical
(0.036% FS per °C)
Mating Electrical Connector:
Amphenol MS3106A-10SL-3S
Connector Pin Assignment:
A = transducer output;
B = + 5V
C = -5V
MECHANICAL
Overload Capacity: Size 0,1 = 1200 lbs. (5338 N),
Size 2 = 2500 lbs. (11,121 N),
Deflection of Sensor Beam: 0.005 in. max. (.127 mm)
Material: 6061, 7075-T6 Aluminum;
303, 304 Stainless Steel
Connector Position (standard):
Screw, Flange, and Piloted Flange mount = 6 o’clock
(connector points in tension force direction)
Pillow Block and Through Frame = center rear
Shaft Bushings (max.):
Size 0,1 Dead = 1.5” (35mm) Live = 1” (20mm)
Size 2 Dead = 1.75” (40mm) Live = 1.5” (40mm)
Basic Dynamic Load Rating of Bearings:
Size 0,1: 1,990 LBF (8,840 N)
Size 2: 3,510 LBF (15,600 N)
