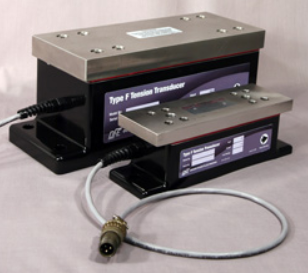

Đầu dò lực căng Models FH, FV | Dover Flexo Electronics Viet Nam

SPECIFICATIONS:

Excitation Voltage: 5 Volts dc (10V with XR option)
Full Scale Output: 250 mVdc nominal (500mVdc with XR)
Strain Gage Resistance:100 ohms nominal (200 ohms XR)
Non-Repeatability: ± 1/4% full span (FS)
Non-Linearity and Hysteresis Combined: ± 1/2% FS
Temperature Range: -10°F to +200°F (-23°C to +93°C)
Mating Electrical Connector:
Amphenol MS3106A-10SL-3S
Materials: 303/304 stainless steel and aluminum
Load Ratings:
Size 2: 100, 200, 400, 800, 1200 lbs.
(225, 450, 900, 1800, 600, 5350 N)
Size 3: 1000, 2500, 5000 lbs. (4450, 11,125, 22,250 N)
Static Overload Capacity: 5 times load rating, minimum
Weight: Size 2: 7 lbs. (3 Kg)
Size 3: 42 lbs. (19 Kg.)
