Sản phẩm

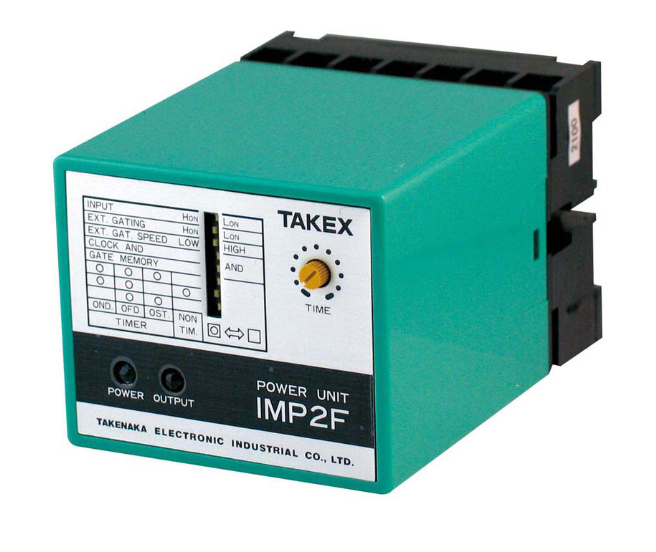

Description	Power supply unit for image sensor
Power consumption	18W or less
Operation mode	* Logic operation in combination with external gating AND, CLOCK AND, GATE MEMORY * Timer function selectable (On-delay, off-delay, one-shot, timer disabled) Delay time: 0.1-10 s
Output mode	Relay contact output 1c Rating: 3A (250V AC) or less noninductive load NPN open collector, Isolation Rating: 50mA (30V DC) or less, Residual voltage: 1V or less
Power supplied to sensor	DC24V ±10% 400mA (short circuit protection circuit provided)
External gating	Contact input NPN transistor input (L: 1 V or less; H: 8 V or more)
Response time	Input Sensor input: 50 μ or less External gate input: HIGH-50 μ or less/ LOW-30ms or less (GAT.SPEED selector switch provided) Output Use of timer: Timer duration setting Relay output: 10 ms or less Open collector output: 1 ms or less (with external gate unused)
Sensor input	NPN transistor input (L: 1 V or less; H: 8 V or more)
Indicator	P.L : power indicator (green LED) OP.L: output indicator (red LED)
Volume (VR)	TIME: delay time adjustment (0.1-10 s variable; turn clockwise to increase)
Switch (SW)	* Logic operation selector switch: See Operation * Timer selector switch: OND. (on-delay), OFD. (off-delay), OST. (one-shot), NON TIM. (timer disabled) Selectable with switch according to combination table
Case material	Polycarbonate (green)
Connection	Plug-in terminal block (with 3.5 mm screws)
Wieght	Approx. 320g or less
Accessory	Operation manual

Ambient temperature	-10 - +55 ℃ (non-freezing)
Ambient humidity	35-85%RH (non-condensing)
Protective structure	IP40
Vibration	10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
Shock	100 m/s2 / 2 times each in 3 directions
Dielectric withstanding/insulation resistance	2000V AC for 1 minute / 500V DC mega / 20 MΩ or higher Between case and power supply Between grounding terminal (FG) and power supply Between case and relay contact Between grounding terminal (FG) and relay contact Between power supply and relay contact 1000V AC for 1 minute / 250V DC mega / 20 MΩ or higher Between sensor power supply and power supply Between sensor power supply and grounding ter
