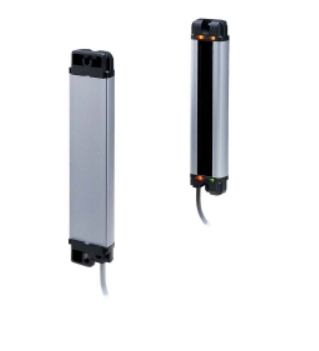

SSC-T801 Light Curtain Sensors TAKENAKA | TAKENAKA VIET NAM

SSC-T801 Light Curtain Sensors TAKENAKA | TAKENAKA VIET NAM
XUẤT XỨ: JAPAN

TÌNH TRẠNG: Mới 100%

MÃ SẢN PHẨM: SSC-T801

HÃNG SẢN XUẤT: TAKENAKA

EMAIL: sale08@tmpvietnam.com

GIÁ BÁN: Liên hệ 0901.251.739

Công ty TNHH TM và DV Tăng Minh Phát là đại lý phân phối chính thức các thiết bị hãng TAKENAKA tại Việt Nam- TAKENAKA Viet Nam.

Thông Tin Sản Phẩm
Đánh Giá

Rating/Performance/Specification

Detection method	Through beam
Detecting distance	100-500mm
Detection object	Opaque dia.6mm or more
No. of light axes	10
Detecting width	50mm
Optical axis interval	5.55mm
Power supply	12 - 24V DC ±10% / Ripple 10% or less
Current consumption	Transmitter: 50mA or less Receiver: 100mA or less *
Output mode	NPN open collector Rating: sink current 100 mA (30 VDC or less)
Operation mode	Activated when light beams of all axes are received (deactivated when light beam of any axis is blocked)*1
Response time	Light blocking :5ms or less Light reception 8ms or less
Light source (wavelength)	Infrared LED (870nm)
Indicator	Transmitter: Power indicator (Green LED) Receiver: Power indicator (Green LED) / Operation indicator ( Orange LED)
Short circuit protection	Provided
Material	Case body: Aluminum / Caps at ends: glass fiber filled PBT / Froht cover : Acrylic
Connection	Attached cable (dia.4 mm) 3 m Cable: 0.3 mm2 x 2 cores, gray (transmitter) or 0.3 mm2 x 3 cores, black (receiver)
Weight	Approx. 130 g (transmitter/receiver)
Accessory	Operation manual (Note) Mounting brackets are not provided
Notes	The receiver current consumption shown is for 12 VDC. When the voltage is 24 VDC, the consumption is reduced to about 60%. 1 "-D" types, or models deactivated when light beams of all axes are received, are also available.

*The receiver current consumption shown is for 12 VDC. When the voltage is 24 VDC, the consumption is reduced to about 60%. *1 "-D" types, or models deactivated when light beams of all axes are received, are also available.

Environmental Specification

Ambient light	5,000lx or less
Ambient temperature	-10 - +55 ℃ (non-freezing)
Ambient humidity	35-85%RH (non-condensing)
Protective structure	IP67
Vibration	10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
Shock	500 m/s2 / Twice each in 3 directions
Dielectric withstanding	500 VAC for 1 minute
Insulation resistance	500 VDC, 20 MΩ or higher.
