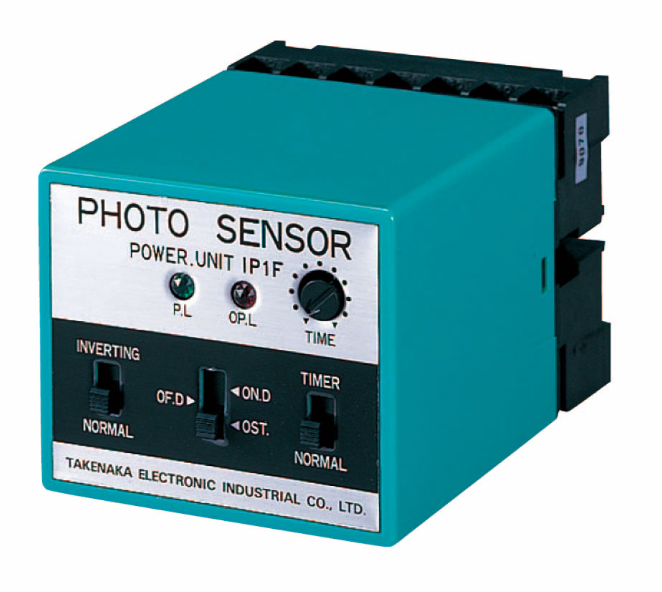

IP1F BỘ NGUỒN TAKENAKA | TAKENAKA VIET NAM

Kính chào quý khách đến với website của chúng tôi !

sale08@tmpvietnam.com

danh mục sản phẩm

hỗ trợ tư vấn

0901.251.739 - 0917 543 068

BỘ PHẬN KINH DOANH

Tấn Vũ: 0901.251.739

MAIL

Mr Vũ: sale08@tmpvietnam.com

THỐNG KÊ TRUY CẬP

Đang online: 4

Truy cập ngày: 268

Truy cập tuần: 2236

Truy cập tháng: 5579

Tổng truy cập: 941240

liên kết website

Sản phẩm

Power supply	100VAC・110 / 200V・220V ±10% 50 / 60Hz
Power consumption	5 VA or less
Operation mode	ON-OFF
Output mode	Relay output 1c Rating : 5A (250VAC) or less resistive load Voltage output Rating : Output impedance 1 KΩ (12VDC)
Power supplied to sensor	12VDC ±5% 100mA or less (150 mA or less for IMP1F)
External gating	Contact input/voltage input [H: 6V or more., L: 1V or less]
Response time	Sensor input: Relay output 25 ms or less Voltage output 0.5 ms or less External gating input: Voltage output 5 ms or less
Indicator	P.L. : Power indicator (green LED) OP.L : Operation indicator (red LED)
Volume (VR)	TIME: Delay time adjustment provided (0.1 - 10s variable)
Switch (SW)	Operation mode selector switch ON.D: On delay OF.D: Off delay OST: One shot Input operation reverse switch: INVERTING : Input reversed NORMAL : Same as input Timer enabled/disabled switch TIMER : Timer enabled NORMAL : Timer disabled
Material	Polycarbonate
Connection	Plug in terminal block (3.5 mm screws)
Weight	Approx. 400 g
Accessories	Operation manual, screws for mounting, terminal block

Ambient temperature	-10 - +50 ℃ (non-freezing)
Ambient humidity	35-85%RH (non-condensing)
Protective structure	IP20
Vibration	10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
Shock	100 m/s2 / 2 times each in 3 directions
Dielectric withstanding	1,500 VAC for 1 minute
Insulation resistance	500 VDC, 20 MΩ or higher
