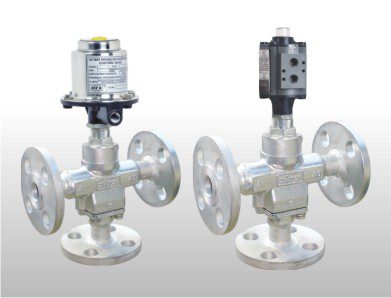

3CVS / 3CVF / 3ACS / 3ACF

Thông số kỹ thuật :

Body : Aluminium / S.S.304
Actuator Type : Double Acting / Single Acting
Air Connection : 1/4″ BSP (NPT On Request)
Operating Pressure : 4.5 to 7 BAR (1/2″ to 2″), 5 to 7 Bar (2.1/2″ to 4″)
Operating Cycles : 350 to 650 Cycles / Hr.
Valve Details :
Model : SRT / ASV / SRK / TOF
Size Range : 1/2″ to 4″
Body : CF8 / CF8M / CF3M
Bonnet : CF8 / CF8M / CF3M
Pressure : up to 10 Bar
Temperature : up to 220°C
Leakage : As per ANSI B 16, 16.104 Leakage Class VI Shut off tight / Bubble tight
End Connection : Screwed End / Flanged End
