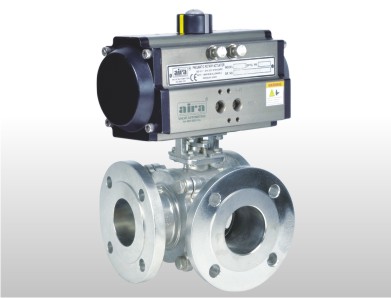

Van Bi 3 ngã CW hãng AIRA

 3 Way  Ball Valve  AIRA

Thông số kỹ thuật :

Design  : 3 Way (‘C’ Way) Ball Valve
Body : WCB / CF8 / CF8M
Size : 1/2" to 8"
Ball : CF8 / CF8M
Seat : PTFE / CFT / GFT / TFM / PEEK
Temprature : Max 180 °C
Pressure : 10 BAR
Port : “L” Port (“T” Port Available On Request)
End Connection : Screwed End, Flanged End As per ASME B16.5 Class 150

Actuator

Thông số kỹ thuật :

METHOD OF TRANSMISSION : RACK AND PINION TYPE
ACTUATION : DOUBLE ACTING
BODY : EXTRUDED ALUMINIUM HARD ANODIZED
CAPS AND RACK : ALUMINIUM PRESSURE DIE CAST
PINION : EN 8
SEALS : BUNA – N / Viton
AIR PRESSURE : NORMAL AIR SUPPLY PRESSURE: 4KG/CM² MAX, AIR SUPPLY PRESSURE:    8KG/CM²
ACTUATOR DESIGN : ISO 5211 (ACTUATOR CAN BE QUICKLY AND EASILY MOUNTING)
ROTATION : 90° / 180° ROTATION
TORQUE : UP TO 13673 NM
