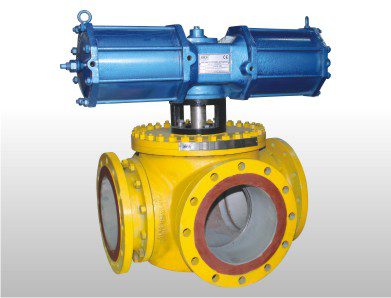

Van Bi 3 ngã / 4 ngã Model SUZ-403 AIRA

3 Way / 4 Way Ball Valve

Thông số kỹ thuật :

Model : SUZ-403

Design : 3 Way-4 Way Design Ball Valve For Multiple Diverting / Mixing Operation available in “T” Port / “L” Port / “X” Port

Body : WCB / CF8 / CF8M

Size : 6" to 12"

Ball : CF8 / CF8M

Seat : PTFE / PEEK / GFT

Temprature : up to 180 °C (Higher Temperature available on Request)

Pressure : up to 10 BAR (High Pressure Available On Request)

End Connection : Flanged End As Per ASME B16.5 Class 150 / 300

Pneumatic Actuators

Thông số kỹ thuật :

METHOD OF TRANSMISSION : SCOTCH & YOKE
ACTUATION : DOUBLE ACTING / SINGLE ACTING
BODY : S.G.IRON
SCOTCH YOKE : S.G.IRON
SEALS : BUNA – N
END COVER : S.G.IRON
AIR PRESSURE : NORMAL AIR SUPPLY PRESSURE: 4 KG/CM² MAX, AIR SUPPLY PRESSURE: 7 KG/CM²
ROTATION : 90° – QUARTER TURN
TORQUE: UP TO 116984 NM
