RTB LOAD CELL SHENCK PROCESS
XUẤT XỨ:

GERMANY

TÌNH TRẠNG:

MỚI :100%

HÃNG SẢN XUẤT:

SHENCK PROCESS

GIÁ BÁN:

LH 0901.251.739

MÃ SẢN PHẨM: RTB LOAD CELL

Tăng Minh Phát - CUNG CẤP THIẾT BỊ SCHENCK PROCESS

Thông Tin Sản Phẩm
Đánh Giá

RTB SHENCK PROCESS

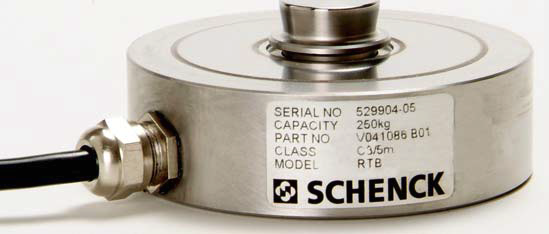

Ring torsion load cell

Application

The load cell as transducer converts the mechanical input variable force proportionally into the electronic output variable voltage.

The specific model of the ring torsion load cell offers the user specific advantages: 

The extremely small frame size simplifies the use in almost all weighing device applications 

The robust construction allows problem-free transport, installation and operation, also under rough ambient conditions (disturbance forces, temperature)

Construction

Hermetically sealed encapsulation through laser welding and glass-metal implementation (IP68) 

Corrosion protection through the use of stainless steel

All electrical components are located inside the load cell and thus are optimally protected 

The high quality and robust connecting cable is guided radially into the load cell 

Mechanically compatible with the RTK type series

Function

High reproducibility 

High long-term stability and therefore consistently high accuracy permanently 

Extremely small measured value influence as a result of lateral forces 

High functional safety, even with frequently unavoidable impact loads and constraining forces, as well as with electrical interferences 

Torque-free force input/output as a result of the direct, vertical power train

THÔNG SỐ KỸ THUẬT : RTB LOAD CELL

Rated capacity	Emax	0,13 t	0,25 t	0,5 t
Accurate class		C3	C3	C3	C3MI7.5	C6
Sensitivity	Cn	1 mV/V ±0.1 mV/V	1.75 mV/V ±0.1 mV/V	2 mV/V ±0.1 mV/V
Combined error	Fcomb	±0.018 %	±0.023 %			±0.0115 %
Minimum dead load output return	Fdr	±0.0167 %	±0.0167 %		±0.0066 %	±0.0083 %
Creep (30 m)	Fcr	±0.012 %	±0.0245 %			±0.0123 %
Hysteresis		±0.017 %	±0.0167 %			±0.0083 %
Temperature effect on zero sensitivity per 10K	TK0	±0.008 % ---	±0.014 % ±0.007 %		±0.014 % ---	±0.009 % ±0.005 %
Temperature effect on sensitivity per 10K	TKc	±0.008 %	±0.01 %			±0.005 %
Maximum number of load cell intervals For multi-divisional scales:	nLC Z	3000	3000 7500			6000
	nLC Z	3000	3000 7500			6000
Minimum load cell verification interval	Vmin	Emax/17500 -----	Emax/10000 Emax/10000 Emax/20000 ---			Emax/15000 Emax/28000
Min. utilisation range	Bamin	17 % ---	30 % 30 % 15 % --			40 % 21 %
Max. utilisation range	Bamax	100 %
Load limit *	Ll	150 %
Max. transverse load	Lq	100 %
Input resistance	Re	1260 ±100	1100 ±50	1110 ±50
Output resistance	Ra	1020 ±0.5	1025 ±50	1025 ±25
Zero signal	S0	1%	1.5 %	1%
Supply voltage	Us	max. 30 V (recommended): 5 V … 15 V
Nominal temperature range	Btn	-10 °C … +40 °C
Service temperature range	Btu	-30 °C … +85 °C	-30 °C … +75 °C
Storage temperature range		-50 °C … +95 °C	-50 °C … +80 °C
Protection class		IP66 / IP68
Cable specification		length of cable 5 m, Screen insulated from housing (0.13 t), or connected to housing (0.25 t – 0.50 t)
Colour code		Input + 82: pink / input - 81: grey output + 28: brown / output - 27: white
Material		Stainless steel
Corrosion protection		see table of Chemical resistance DDP8 483
Recommended torque for attachment bolts		8 Nm	12 – 14 Nm
ATEX-approval		II 2G; EEx ib IIC T6 / II 2D T70 °C

BẢN VẼ CHI TIẾT : RTB

ORDER CODE : RTB

Order No.
Variants	Accuracy class
	C3	C3MI7,5	C6
0.13 t	V041085.B01	---	---
0.25 t	V041086.B01	---	---
0.50 t	V041087.B01	V041087.B03	V041087.B06
0.25 t MR	V041086.B07	---	---
0.50 t MR	V041087.B07	---	please enquire
Order No. Version ATEX II 2G; EEx ib IIC T6 / II 2D T70 °C
0.13 t	V041085.B11	---	---
0.25 t	V041086.B11	---	---
0.50 t	V041087.B11	---	please enquire

CÁC MODEL KHÁC

VCU 20100 shenck process

VAI 20100 shenck process
VAO 20100 shenck process
VAO 20103 shenck process
VME 20102 shenck process
VFG 20103 shenck process
VFG 20104 shenck process
VEG 20100 shenck process
VHM 20100 shenck process
VHM 20100 shenck process
VHM 20101 shenck process
VHM 20110 shenck process
VHM 20121 shenck process
VPB 28020 shenck process
VPN 28020 shenck process
VSS 28020 shenck process
VCB 28020 shenck process
VPC 20150 shenck process
VMO of VLG shenck process
VBW 20170 shenck process
VWF 20170 shenck process
VLW 20170 shenck process
VIF 20170 shenck process
VMC 20170 shenck process
VBC 20170 shenck process
VSF 20170 shenck process
VIO 20170 shenck process
Central control unit, minimum 1 x per system. Optional expansion via up to 2 additional VCU
Model: VCU 20100

Single channel analog input card
Model: VAI 20100

Single channel analog output card 0(4) ... 20 mA
Model: VAO 20100

VCU for field housin
Model: VFG 20103/VFG 20104

Operator panel for control panel mounting with supply by VCU 20100
Model: VHM 20100

PROFIBUS Interface
Model: VPB 28020

Optional local motor control unit
Model: VLG 20100

Software for VCU 20100 - Weighfeeders MULTIDOS
Model: VWF 20170
