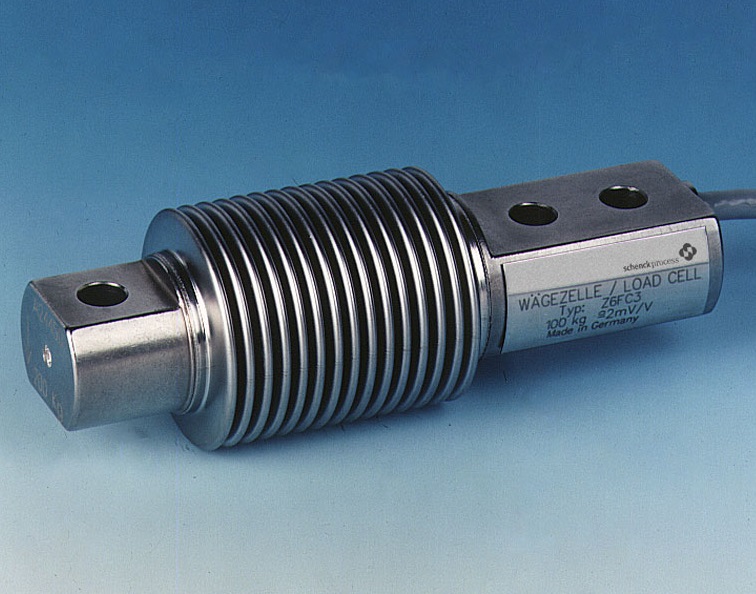

Rated capacity

Emax

5 kg - 0,5 t

Accuracy class

D1

C3

C4

C6

Nominal characteristic value

Cn

2mV/V + 20µ

V/V; -2µV/V

2 mV/V ± 1 µ V/V

Combined error

Fcomb

0,05 %

0,02 %

0,013 %

0,01 %

Zero signal return after

loading (30 min)

Fdr

± 0,049 %

± 0,016 %

± 0,012 %

± 0,008 %

Creep error during stress

(30 min)

Fcr

± 0,049 %

± 0,016 %

± 0,012 %

± 0,008 %

Temperature coefficient of

zero signal

TK0

±0,05%/10 K

±0,0125%/10 K

±0,009%/10 K

±0,009%/10 K

Temperature coefficient of

characteristic value

TKc

±0,05%/10 K

±0,008%/10 K

±0,007%/10 K

±0,004%/10 K

Maximum number of incre-

ments in certified applications

nLC

1000

3000

4000

6000

Min. scale interval

vmin

0,036 %

0,009 %

0,0066 %

0,0066 %

Minimum utilisation rate

Bamin

36 %

27 %

26 %

39 %

Maximum utilisation rate

Bamax

Bamax = Emax

Input resistance

Re

350 - 480

Output resistance

Ra

356 ± 0,2

356 ± 0,12

Zero signal

S0

±1%

Maximum supply voltage

Usmax

18 V

Nominal temperature range

Btn

-10°C to +40°C

Service temperature range

Btu

-30°C to +70°C

Reference temperature

tr

23°C

Storage temperature range

Bts

-50°C to +85°C

Safe load limit

EL

150 %

Breaking load

ED

300 %

Protection class

IP67 (tightened test conditions: 1 m water gauge; 100 h)

Cable specification

3 m PVC cable, 6 wires, shielded, shield on housing

Colour code

black  : input  - / blue : input  + / yellow: shield

red    : output - / white : output +

grey   : sensor - / green : sensor +

Corrosion protection

Stainless steel
