VFM 28000 Radio Module

Radio modem substitute for cable connections between scales system components or between scales and plant system

 RF modems, broadcast-license free Europewide Frequency band: 869 MHz

Radio range 250 m (with clear line of sight)

 Multi-channel compliant

 Bluetooth radio module (class 1) range 100 m

 Protection class IP65

 Approved for legal-for-trade operation

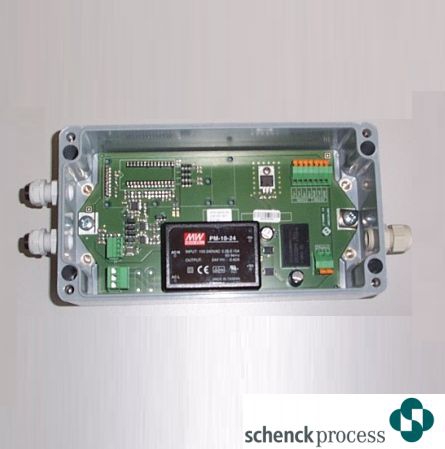

The VFM 28000 radio module is used as a substitute for cable connections in situations in which installation of cables would be unnecessarily expensive, if cables could be easily damaged or if cables cannot be used.

Typical applications are:

- Coupling of weighing electronics to a crane crossbeam (replacing a cable drum or a trailing cable installation)

- Connections between mobile plant components, containers free to move to a degree, or operating panels in vehicles

- Connections over long distances between plant components, in particular across open spaces

- Communication between a DISOMAT and a mirror device or a VOP display device or communication with a DISOBOX (with the RF modules only)

- Control of a large display or a printer

Combined with the DISOMAT and DISOBOX series analysis devices, the VFM modems are also certified for the transfer of legal-for-trade data.

As radio frequency modems the VFM devices require no broadcast licenses anywhere in Europe – national legislation must be referred to outside Europe.

The Bluetooth version can be used worldwide

THÔNG SỐ KỸ THUẬT : VFM 28000

Order Numbers

BẢN VẼ CHI TIẾT : VFM 28000
