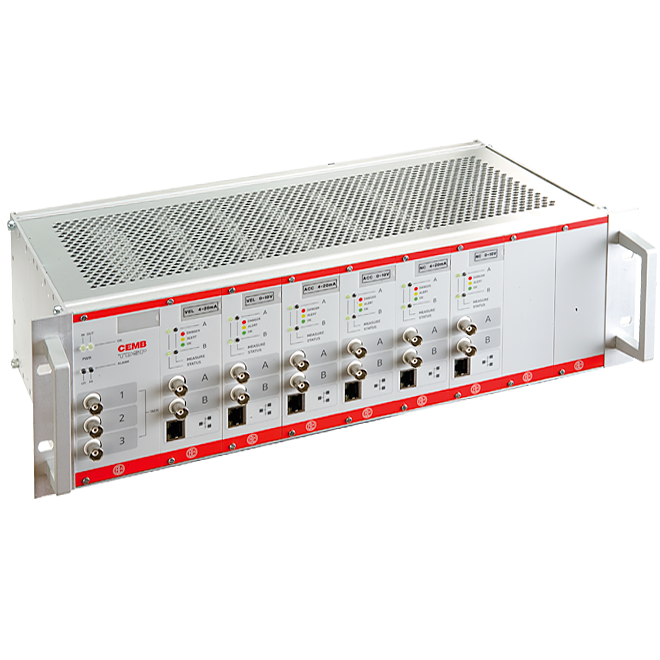

Bộ giám sát rung TDSP CEMB

The PSU TDSP power supply module is able to provide power to all modules fitted on a TDSP rack in order to guarantee correct operations safely and reliably.

In addition to converting the DC or AC voltage into the DC, stabilised voltage required for correct functioning of the various TDSP modules, the power supply module is fitted with 3 independent phase reference detection channels.

Characteristics / applications

The PSU TDSP power supply module is designed to be fitted on a standard 19” rack and is set up to allow for multiple use for applications that call for redundancy to guarantee more reliable working of the protection system. The correctness of the incoming and outgoing supplies is indicated by 4 LEDs on the panel and 2 relays.

THÔNG SỐ KỸ THUẬT :TDSP

• Electrical

- Inputs:
90 ÷ 264 VAC 50/60 HZ
19 ÷ 32 VDC
85 ÷ 140 VDC
120 ÷ 370 VDC
- Power 100 W
- Output 24 VDC, 4A
- N° 3 phase reference channels
- N° 3 phase signal BNCs
- The entire TDSP unit conforms to the (EN 61010-1) electrical safety and (EN 61326-1) EMC standards
- Connection as shown in dwg 94875-P2 attached

• Ambient conditions:

- Temperature range 0 °C to + 70 °C
- Humidity 95% non condensing

• Mechanical conditions:

- Dimensions as per DIN 41494 (12TE, 3HE, P220)
- Weight 400 g
