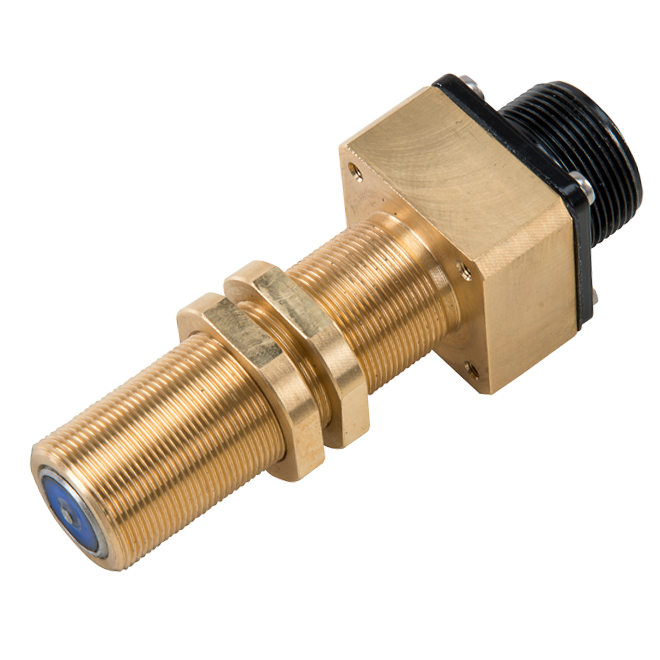

T6-R

Rotation speed sensor

Function

The transducer T6-R is used for performing the following measurements:

SPEED OF ROTATION of the machine, the measurement is made by mounting the transducer next to a gear wheel (polar wheel) with a known number of teeth.

Principle of operation

Transducer T6-R measures the variation in flow due to the variation of the air-gap.

Such variation generates an impulsive type signal which can be processed by the CEMB instrument of series “T”.

TECHNICAL CHARACTERISTICS:

Type of measurement          : Electromagnetic induction

Range of measurement       : 0 to 30000 Hz

Coil resistance                     : 85 ohm max.

Inductance                           : 25 mH max.

Power supply                       : None

Connection                          : Connector MIL C-5015, series 3102/16, standard kit

Casing material                   : Brass

Range of application           : Temperature = -35°C to +105°C

                                               Humidity = max 100%

                                              Ambient = IP65 EN60529/10.91

                                              Vibrations = max.100 mm/s

Weight                                 : ~ 0,1 Kg

Maintenance                        : None

Drawings enclosed              : 14886 = Overall dimensions, mounting, connections.
