MÁY ĐO ĐỘ RUNG- N130-GL CEMB/CEMB VIETNAM

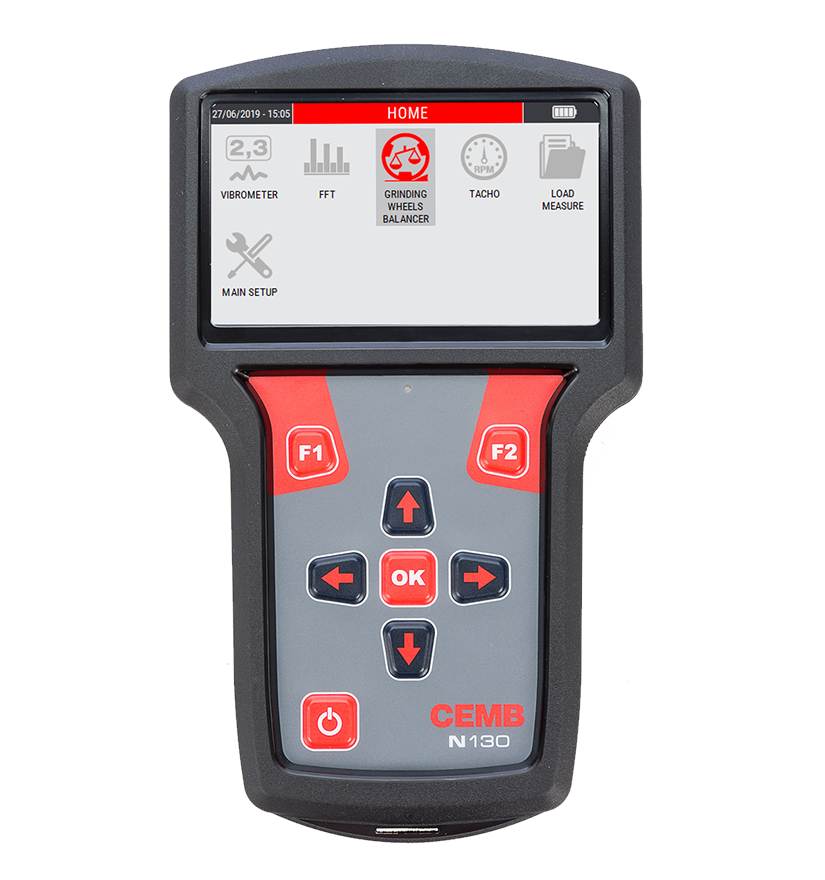

N130-GL

Single Channel portable instrument with 4,3" graphic display - Specific for grinding wheels balancer

N130-GL grinding wheels balancer

The smart solution for grinding wheel machines

THÔNG SỐ KỸ THUẬT : N130-GL

Display: 4,3” colour LED-backlit TFT LCD (480 x 272 pixel) New EasyClick tactile keyboard with embossed keys Internal memory: 14,8 Gb (expandible to 128 Gb)

Multi languages user interface

MEASUREMENT TYPES

Effective value (RMS) Peak value (Pk)

Peak-to-peak value (PP)

MEASURING PERFORMANCE

Bandwidth: 1-10 KHz

FFT Resolution: Max 3200 lines Tacho: Up to 250000 rpm

UNITS OF MEASUREMENT

Acceleration: [g]

Velocity: [mm/s] or [inch/s] Displacement: [μm] or [mils] Frequency: [Hz] or [Cpm]

INPUT

1 measuring channels IEPE sensor, accelerometer and velomitor.

With a specify cable pluggable on a BNC for read any dinamic signal max. 10V PkPk

1 photocell channel (velocity and angle reference) 1 MicroUSB 2.0 port for data transfer

1 jack plug for battery charger

AMBIENT

Temperature: from -20° to +70° C

Air humidity: from 0 to 95% without condensate Protection: IP54

POWER SUPPLY

Long Life Battery: > 8 hours based on typical use Charging time: 2,5 hours for 80% recharge

4 hours for 100% recharge Rechargeable 3100 mAh Lithium battery

Power supply-battery charger for 100-240 V, 50/60 Hz (24 V, 1.5 A)

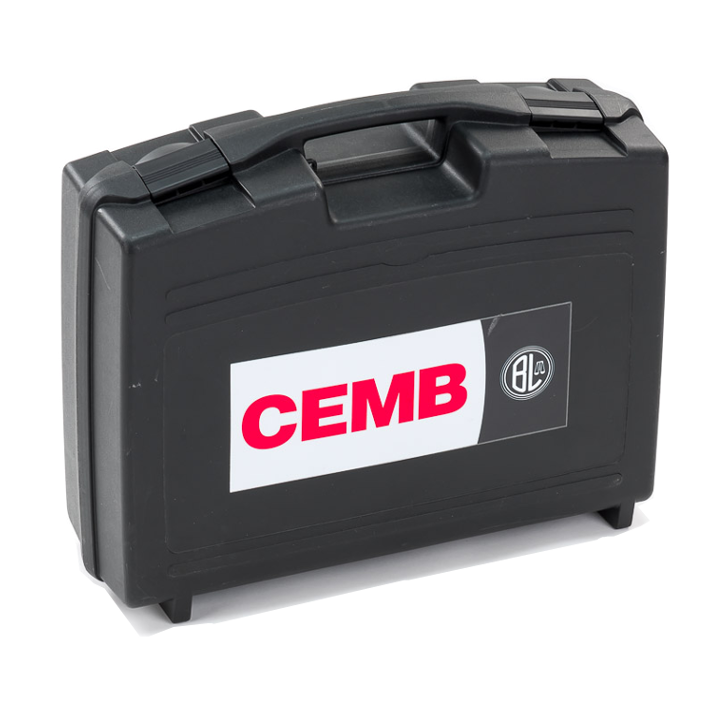

CARRYING CASE DIMENSIONS AND WEIGHT

Approx. 370(L) x 300 (H) x 115(D) 1800 g

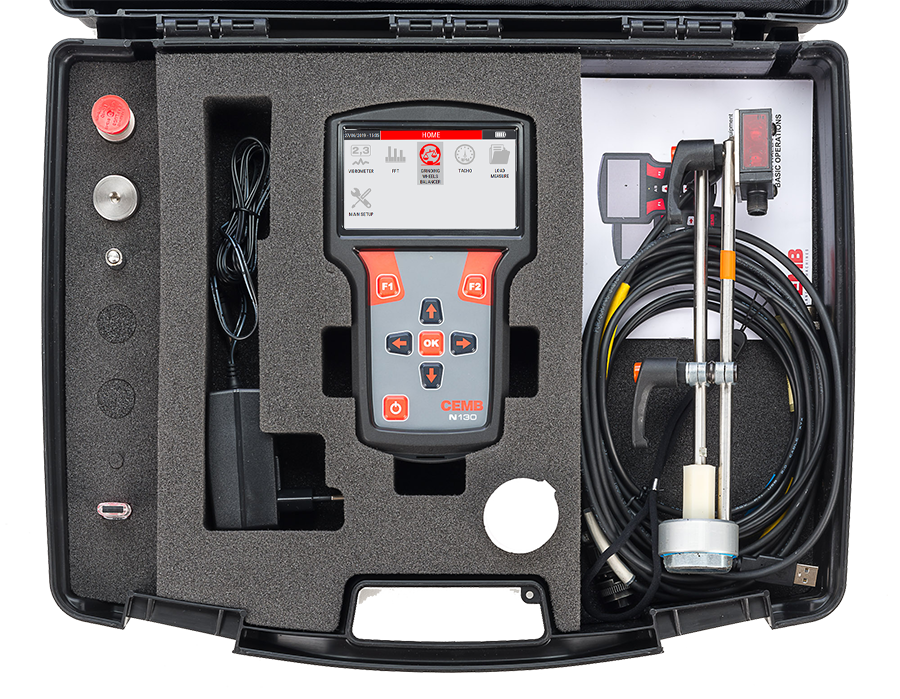

NHỮNG PHỤ KIỆN ĐI KÈM : N130-GL

TÙY CHỌN :
