THÔNG TIN SẢN PHẨM: VEGACAL 62, 65, 66, 67

                                                                   :   VEGACAL 62 ,63, 64, 66, 69

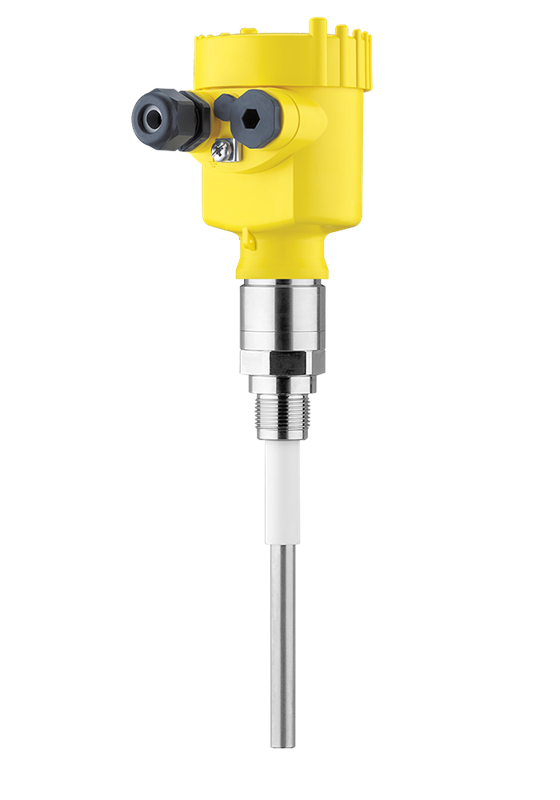

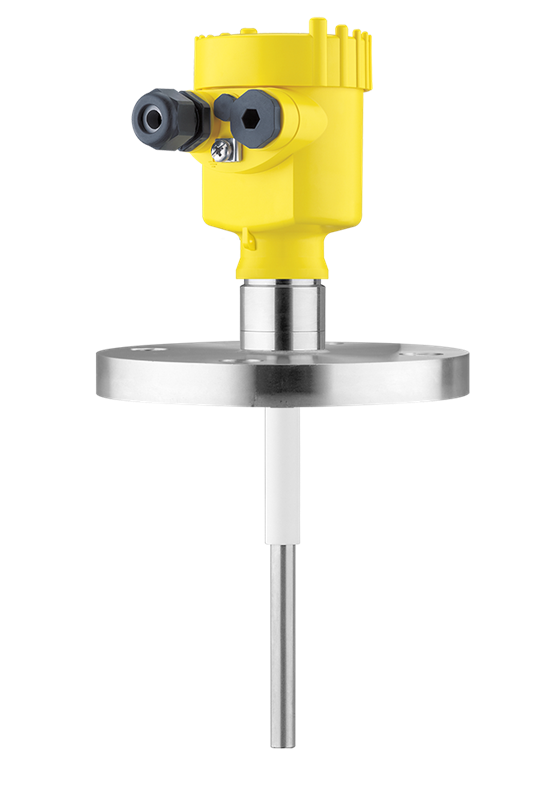

VEGACAL 62

Capacitive rod probe for continuous level measurement

The VEGACAL 62 is a level sensor for continuous level measurement in all industries. The partly insulated probe is designed for measurement of bulk solids and can be also used in non-conductive liquids such as e.g. oil. The proven construction offers high functional safety.

Your benefit

• High flexibility through shortenable probe
• Long lifetime and low maintenance requirement through robust mechanical construction
• Maximum utilization of the vessel because measurement over the complete probe length

THÔNG SỐ KỸ THUẬT : VEGACAL 62

Measuring range - Distance : 6 m

Process temperature : -50 ... 200 °C

Process pressure : -1 ... 64 bar

Version : with screening tube PN1

               with concentric tube

Standard : Materials, wetted parts

                 PTFE

                316L

                Alloy 400 (2.4360)

                PEEK

                Steel C22.8

Threaded connection : ≥ G½, ≥ ½ NPT

Flange connection : ≥ DN25, ≥ 1"

Seal material : no media contact

Housing material : Plastic

                              Aluminium

                              Stainless steel (precision casting)

                              Stainless steel (electropolished)

Protection rating : IP 66/IP 68 (0.2 bar)

                              IP 66/IP 67

                              IP 66/IP 68 (1 bar)

Output : Profibus PA

Foundation Fieldbus : 4 … 20 mA/HART - two-wire

Ambient temperature : -40 ... 80 °C
