VEGASON 62 CẢM BIẾN ĐO MỨC BẰNG SIÊU ÂM - Nhà phân phối VEGA

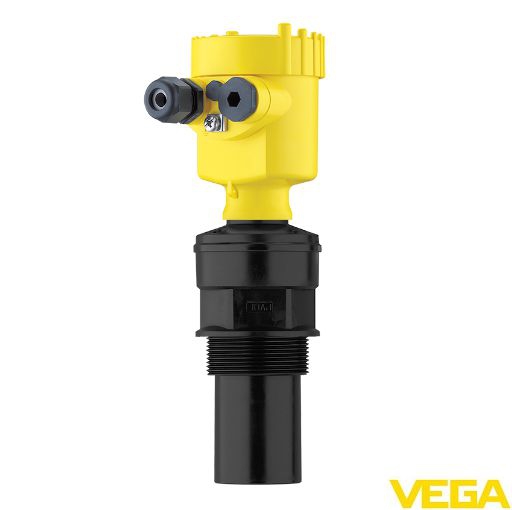

VEGASON 62

VEGASON 62 Cảm biến đo mức | VEGASON 62 Ultrasonic sensor

Ultrasonic sensor for continuous level measurement

Measures liquids up to 8 m and bulk solids up to 3.5 m away

Application area

Extensive selection of electronics, housings, approvals. Process fittings: G2 or 2 NPT

The VEGASON 62 is an ultrasonic sensor for continuous level measurement of liquids and bulk solids. Typical applications are the measurement of liquids in storage vessels or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or silos. Application areas can be found in all industries. The non-contact measuring principle is unaffected by product features and allows a setup without medium.

Your benefit

• Price-favourable solution for simple applications

• Maintenance-free operation through non-contact measuring principle

• Reliable measurement independent of product features

THÔNG SỐ KỸ THUẬT : VEGASON 62

Measuring range - Distance : 8 m

Process temperature : -40 ... 80 °C

Process pressure : -0.2 ... 2 bar

Accuracy : ± 10 mm / ± 0.4"

Materials, wetted parts : PVDF

Threaded connection : ≥ G2, ≥ 2 NPT

Seal material

• EPDM
• FKM

Housing material

• Plastic
• Aluminium
• Stainless steel (precision casting)
• Stainless steel (electropolished)

Protection rating

• IP 66/IP 68 (0.2 bar)
• IP 66/IP 67
• IP 66/IP 68 (1 bar)

Output : Profibus PA

Foundation Fieldbus

• 4 … 20 mA/HART - two-wire
• 4 … 20 mA/HART - four-wire

Ambient temperature : -40 ... 80 °C
