VEGAPULS 63 VEGA CẢM BIẾN ĐO MỨC BẰNG SÓNG RADAR

MODEL CODE‎: ‎PS64.AXBXXCHXKMXXX

SERIAL NUMBER‎: ‎31979683

Radar sensor for continuous level measurement of liquids

For aggressive liquids or under hygienic requirements

Application area

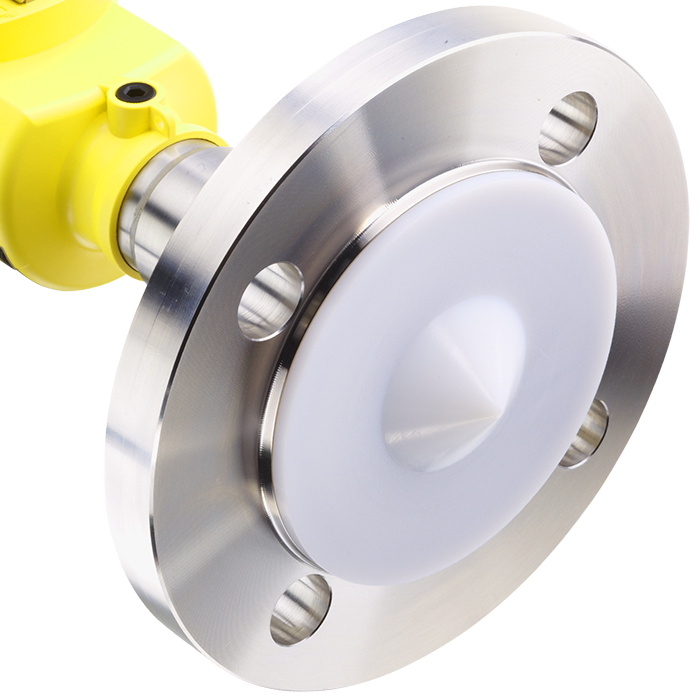

The front-flush mounting of the encapsulated antenna system ensures optimum cleaning even with strict hygienic requirements.

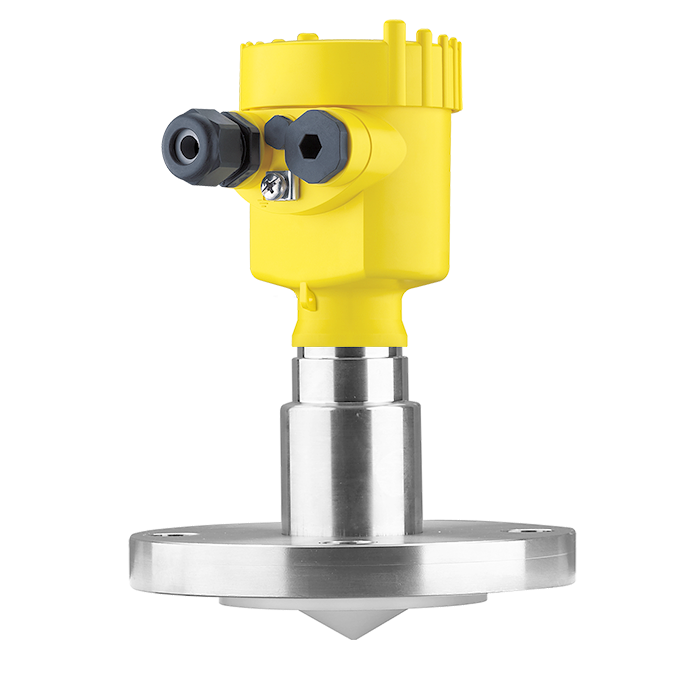

The VEGAPULS 63 is a radar sensor for continuous level measurement of aggressive liquids or with hygienic requirements. It is suitable for applications in storage tanks, process vessels, dosing vessels and reactors. The encapsulated antenna system of VEGAPULS 63 protects the VEGAPULS 63 against pollution and ensures a maintenance-free permanent operation. The front-flush mounting ensures an optimum cleanability even with high hygienic requirements.

Your benefit

• Exact measuring results independent of process conditions

• High plant availability, because wear and maintenance-free

• Maintenance-free operation through non-contact measuring principle

THÔNG SỐ KỸ THUẬT : VEGAPLUS 63

Measuring range - Distance : 35 m

Process temperature : -196 ... 200 °C

Process pressure : -1 ... 16 bar

Accuracy : ± 2 mm

Version : hygienically encapsulated horn antenna

Materials, wetted parts

• PFA
• PTFE
• 316L
• TFM-PCTFE
• TFM-PTFE

Flange connection : ≥ DN50, ≥ 2"

Hygenic fittings

• Clamp ≥ 2", DN50 - DIN32676, ISO2852
• Slotted nut ≥ 2", DN50 - DIN 11851
• Varivent ≥ DN25
• hygienic fitting with tension flange DN32
• hygienic fitting F40 with compression nut
• Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A
• Hygienice flange connection ≥ DN50 DIN11864-2
• Hygienic clamp connection ≥ DN50 pipe Ø53 - DIN11864-3-A
• DRD connection ø 65 mm
• SMS 1145 DN51

Housing material

• Plastic
• Aluminium

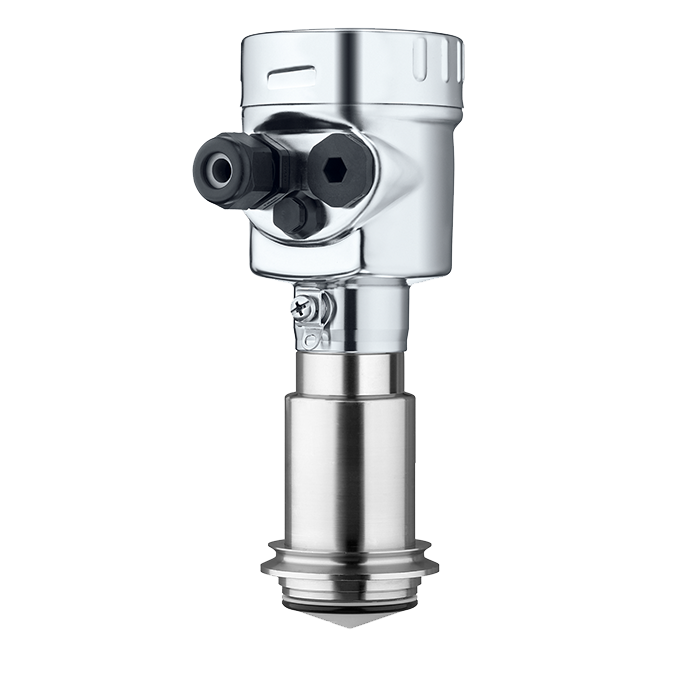

• Stainless steel (precision casting)
• Stainless steel (electropolished)

Protection rating

• IP 66/IP 68 (0.2 bar)
• IP 66/IP 67
• IP 66/IP 68 (1 bar)

Output

• Profibus PA
• Foundation Fieldbus
• 4 … 20 mA/HART - two-wire
• Modbus
• 4 … 20 mA/HART - four-wire

Ambient temperature : -40 ... 80 °C
