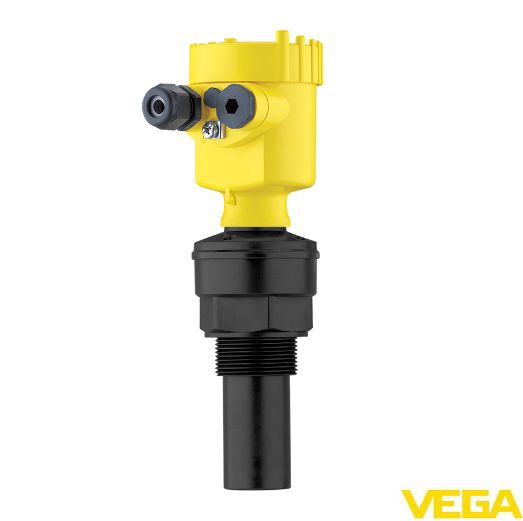

VEGASON 61

The VEGASON 61 is an ultrasonic sensor for continuous level measurement of liquids or bulk solids. Typical applications are the measurement of liquids in storage tanks or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or open containers. The non-contact measuring principle is independent of product features and allows a setup without medium.

THÔNG SỐ KỸ THUẬT : VEGASON 61

Measuring range - Distance : 5 m

Process temperature : -40 ... 80 °C

Process pressure : -0.2 ... 2 bar

Accuracy :± 10 mm / ± 0.4"

Materials, wetted parts : PVDF

Threaded connection : ≥ G1½, ≥ 1½ NPT

Hygenic fittings

• Clamp ≥ 2", DN50 - DIN32676, ISO2852
• Clamp ≥ 3", DN65 - DIN32676, ISO2852
• Clamp ≥ 3½" , DN80 - DIN32676, ISO2852
• Clamp ≥ 4" , DN100 - DIN32676, ISO2852
• Slotted nut ≥ 3", DN65 - DIN 11851
• Slotted nut ≥ 3½", ≥ DN80 - DIN 11851
• Slotted nut ≥ 4", ≥ DN100 - DIN 11851

Seal material

• EPDM
• FKM

Housing material

• Plastic
• Aluminium
• Stainless steel (precision casting)
• Stainless steel (electropolished)

Protection rating

• IP 66/IP 68 (0.2 bar)
• IP 66/IP 67
• IP 66/IP 68 (1 bar)

Output : Profibus PA

Foundation Fieldbus

• 4 … 20 mA/HART - two-wire
• 4 … 20 mA/HART - four-wire

Ambient temperature : -40 ... 80 °C
