VEGAFLEX 81

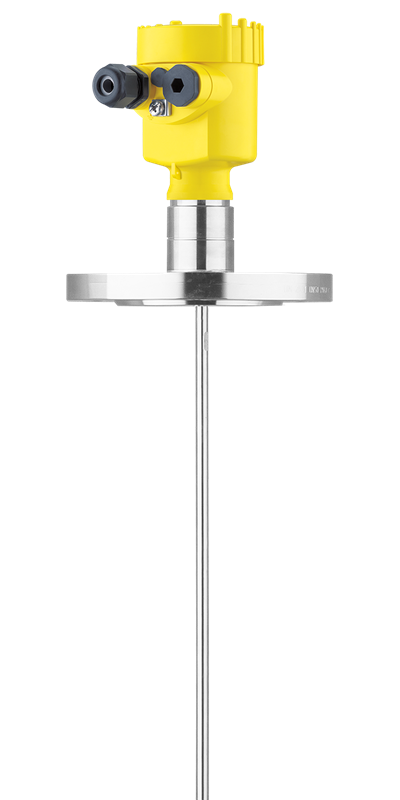

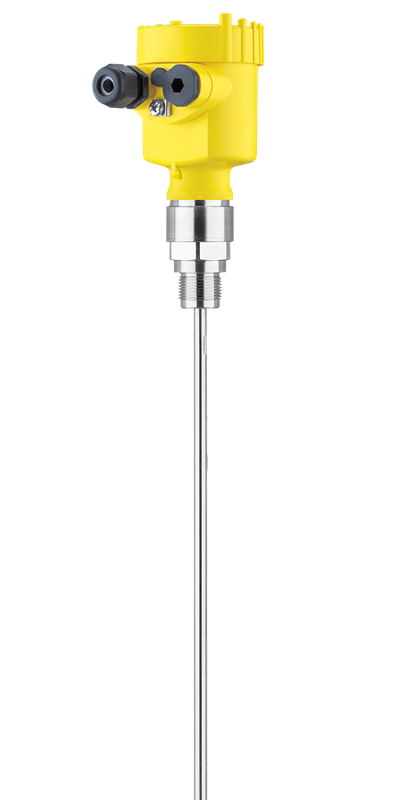

VEGAFLEX 81 Cảm biến báo mức | VEGAFLEX 81 Level Sensor

The VEGAFLEX 81 guided radar sensor is exceptional when it comes to measuring the level or interface of liquids. Guided radar is extremely versatile and can be found in almost every industrial sector. Whether bitumen or liquefied gas, in storage containers or standpipes, in a metering tank or in tank farms – VEGAFLEX 81 measures the level or interface (separation layers) of liquids with great reliability and accuracy.

Guided radar delivers reliable measurements data for control or safety systems for

THÔNG SỐ KỸ THUẬT : VEGAFLEX 81

• Measuring range: Cable probe up to 75 m (246.1 ft), Rod probe up to 6 m (19.69 ft)
• Measuring accuracy ± 2 mm
• Process fitting Thread from G¾, ¾ NPT, flanges from DN 25, 1"
• Process pressure -1 … +40 bar/-100 … +4000 kPa (-14.5 … +580 psig)
• Process temperature -40 … +200 °C (-40 … +392 °F)
• Ambient, storage and transport temperature: -40 … +80 °C (-40 … +176 °F)
• Operating voltage: 9.6 … 35 V DC
•

BẢN VẼ CHI TIẾT: VEGAFLEX 81
