THÔNG TIN SẢN PHẨM : VEGASWING 51, 61, 63, 66

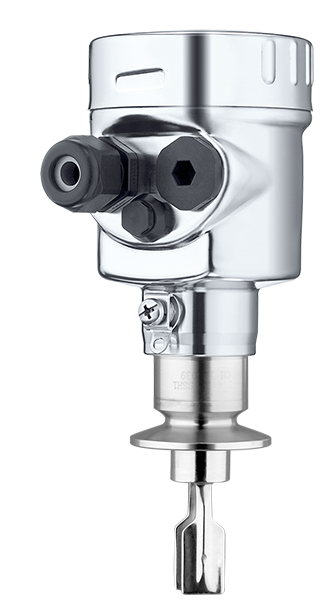

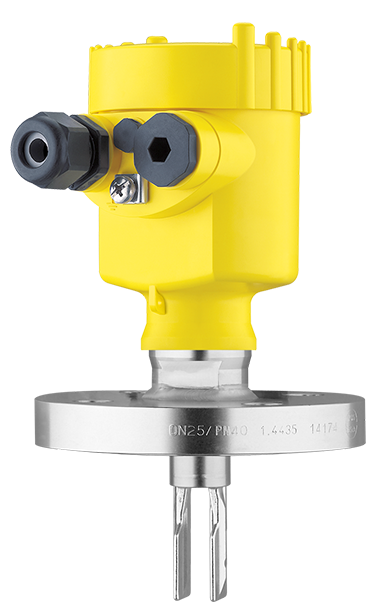

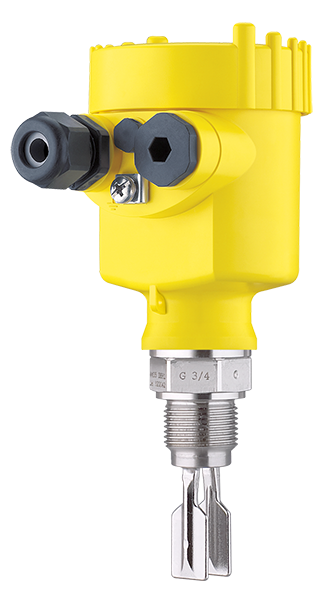

VEGASWING 61

Vibrating level switch for liquids

For liquids (density: > 0.5 ... 2.5 g/cm³) – compact version

• Precise and reliable function due to product-independent switching point
• Low maintenance costs
• Minimum time and cost expenditure thanks to simple setup without medium

THÔNG SỐ KỸ THUẬT : VEGASWING 61

Process temperature : -50 ... 250 °C

Process pressure : -1 ... 64 bar

Version

• Standard
• Hygienic applications
• with gas-tight leadthrough
• with temperature adapter
• Materials, wetted parts
• PFA
• 316L
• Alloy C22 (2.4602)
• Alloy 400 (2.4360)
• ECTFE
• Enamel

Threaded connection : ≥ G¾, ≥ ¾ NPT

Flange connection : ≥ DN25, ≥ 1"

Hygenic fittings

• Clamp ≥ 1" - DIN32676, ISO2852
• Slotted nut ≥ 1½", ≥ DN40 - DIN 11851
• Varivent ≥ DN25
• hygienic fitting F40 with compression nut
• SMS 1145 DN51
• SMS DN38
• Hygienic fittings ≥ DN25 - DIN11864-1-A
• Hygienic flange connection DIN11864-2-A; DN60(ISO)ø60,3
• SMS socket piece DN38 PN6

Seal material : no media contact

Housing material

• Plastic
• Aluminium
• Stainless steel (precision casting)
• Stainless steel (electropolished)
• Protection rating
• IP 66/IP 67
• IP 66/IP 68 (1 bar)
• IP 65

Output

• Relay (DPDT)
• Contactless electronic switch
• Transistor (NPN/PNP)
• Two-wire
• NAMUR

Ambient temperature : -40 ... 70 °C
