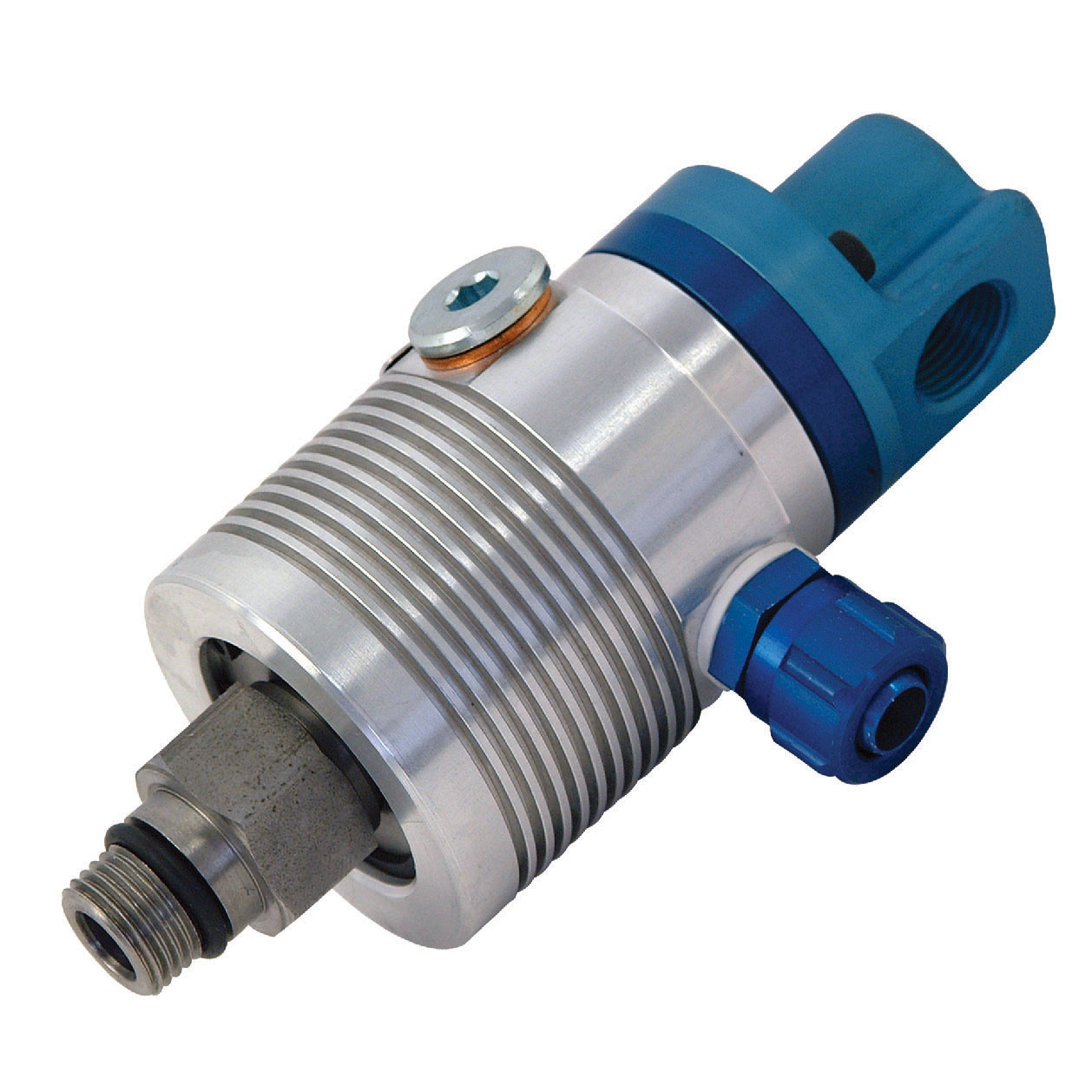

UNION 1109-020-188 DEUBLIN

Single passage for coolant or MQL
Pop-Off™ technology allows unlimited dry running without media pressure
Full-flow design has no obstructions to trap swarf or debris
Bearing-supported with threaded rotor for easy installation
Dual angular contact ball bearings
Labyrinth system and large vents to protect ball bearings
Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
Anodized aluminum housing resists corrosion

Thông số kỹ thuật :

Media : MQL, Coolant

Rotor Connection : M16x1.5 LH, 17.993 mm pilot

Housing Connection : G 3/8"-19

Coolant Max. Flow : 81.8 l/min

Coolant Max. Pressure : 103.4 bar

Coolant Max. Temperature :71 °C

MQL Max. Flow : 2040 l/min

MQL Max. Pressure : 10 bar

MQL Max. Temperature : 71 °C

Kích Thước :

A : M16x1.5 LH

B : G 3/8"-19

C : 53.5 mm

D1 : 135 mm

E : 30 mm

F : 15.9 mm

G : 8.5 mm

H : 24 mm

I : 17.993 mm

J : 104.1 mm

P : G 1/4"-19

X : 4.7 mm
