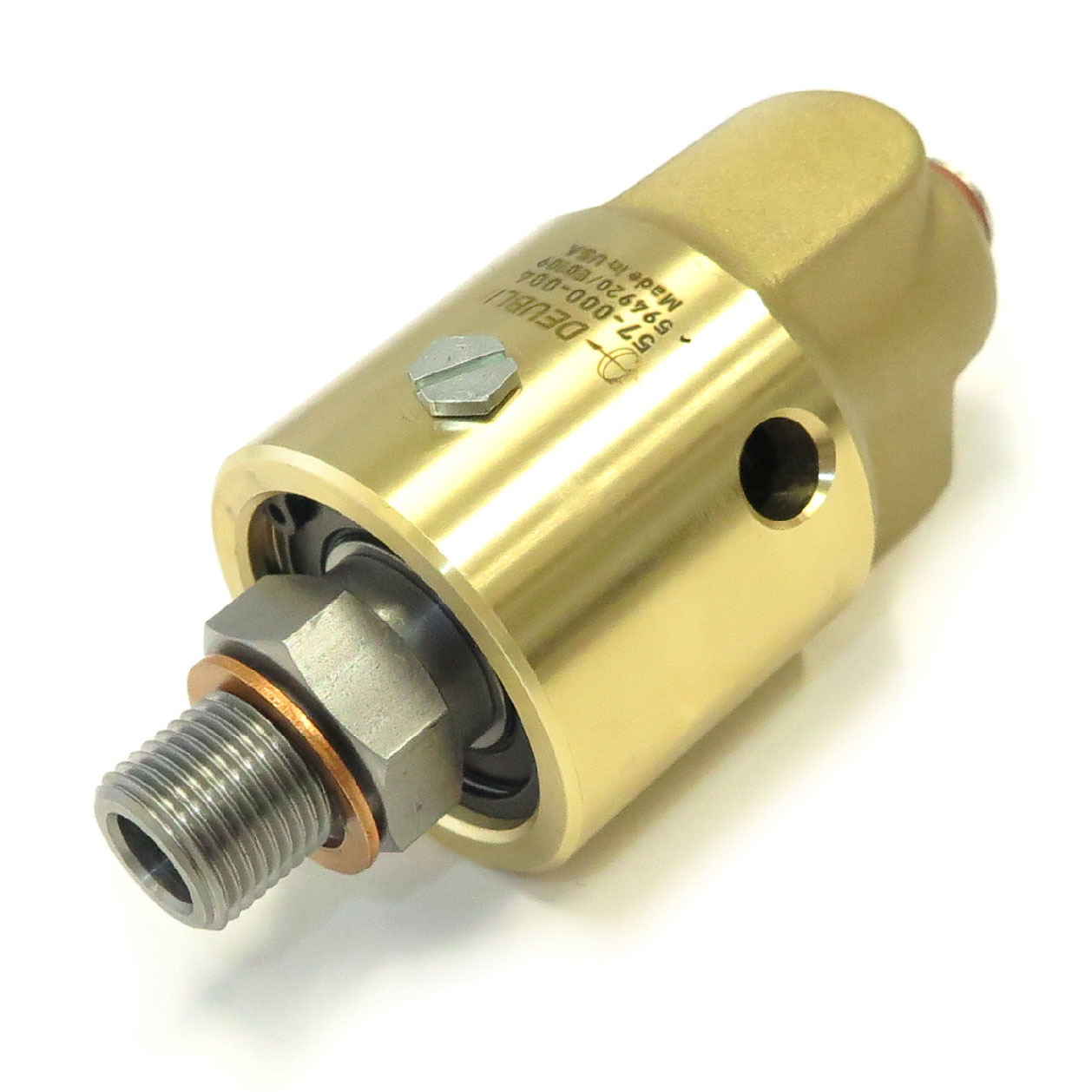

57-000-004 DEUBLIN

Monoflow and duoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seals
Keyed rotor seal
Easy and quick replacement of sealing components
Ball bearings lubricated for life
E.L.S. (Extended Life Service) seal combination for poor water quality
3 vent holes
Forged brass housing and stainless steel rotor
Special options include threaded vent holes

Thông số kỹ thuật :

Media : Water, Steam, Hot Oil

Rotor Connection : 5/8"-18 UNF LH

Housing Connection : 3/8"-18 NPT

Hot Oil Max. Flow : 3.3 GPM

Hot Oil Max. Pressure : 100 psi

Hot Oil Max. Temperature : 250 °F

Steam Max. Flow : 13.7 GPM

Steam Max. Pressure : 15 psi

Steam Max. Temperature : 250 °F

Water Max. Flow : 3.3 GPM

Water Max. Pressure : 750 psi

Water Max. Temperature : 250 °F

Kích thước :

A : 5/8"-18 UNF LH

B : 3/8"-18 NPT

C : 1.732"

D1 : 4.016"

E : 1.024"

F : 0.63"

G : 0.374"

H : 0.866"

J : 2.638"

K : 1/4"-18 NPT

P : Non-Threaded
