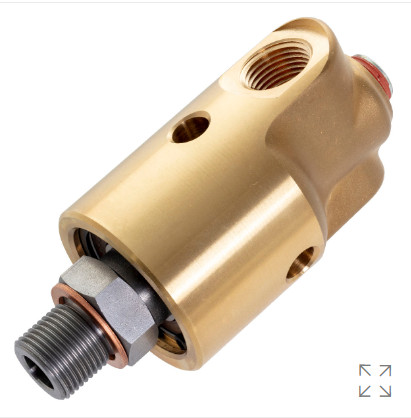

Khớp nối 57-050-094 DEUBLIN

57-050-094 Deublin

Monoflow and duoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seals
Keyed rotor seal
Easy and quick replacement of sealing components
Ball bearings lubricated for life
E.L.S. (Extended Life Service) seal combination for poor water quality
3 vent holes
Forged brass housing and stainless steel rotor
Special options include threaded vent holes

Thông số kỹ thuật :

Media : Water, Steam, Hot Oil
Rotor Connection : G 3/8"-19 RH
Housing Connection : 3/8"-18 NPT
Hot Oil Max. Flow : 12.5 l/min
Hot Oil Max. Pressure : 9 bar
Hot Oil Max. Temperature : 121 °C
Steam Max. Flow  : 51.9 l/min
Steam Max. Pressure : 1 bar
Steam Max. Temperature : 121 °C
Water Max. Flow  : 12.5 l/min
Water Max. Pressure : 51.7 bar
Water Max. Temperature  : 121 °C

A : G 3/8"-19 RH
B : 3/8"-18 NPT
C : 44.5 mm
D1 : 103 mm
E : 26 mm
F : 16 mm
G : 9.5 mm
H : 22 mm
J : 67 mm
K : 1/4"-18 NPT
P : Non-Threaded
