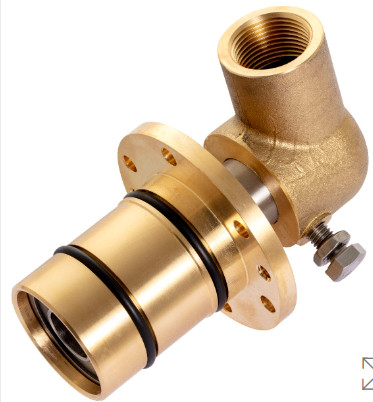

Union, CCM, fits 46 mm bore, G 3/4" 2420-005-139

Monoflow and duoflow design
In-the-shaft mounted
Self-supported rotating union
Flanged housing or mounted with retaining plate
Balanced mechanical seals
Seal combination: Silicon Carbide/Silicon Carbide
Brass housing and elbow
Stainless steel rotor and supply pipe
Engineered sleeve bearing
Full-media flow
Easily field repairable

Thông số kỹ thuật :  240-005-139

Media : Water
Rotor Connection : O-ring, 46 mm pilot
Housing Connection: G 3/4"-14
Water Max. Flow: 53 l/min
Water Max. Pressure: 10 bar
Water Max. Temperature: 121 °C

Kích thước :

A :77 mm

B :G 3/4"-14

C :77 mm

D1 :122 mm

F : 59 mm

G : 17.5 mm

I : 46 mm

J : 46 mm

X : 8 mm
