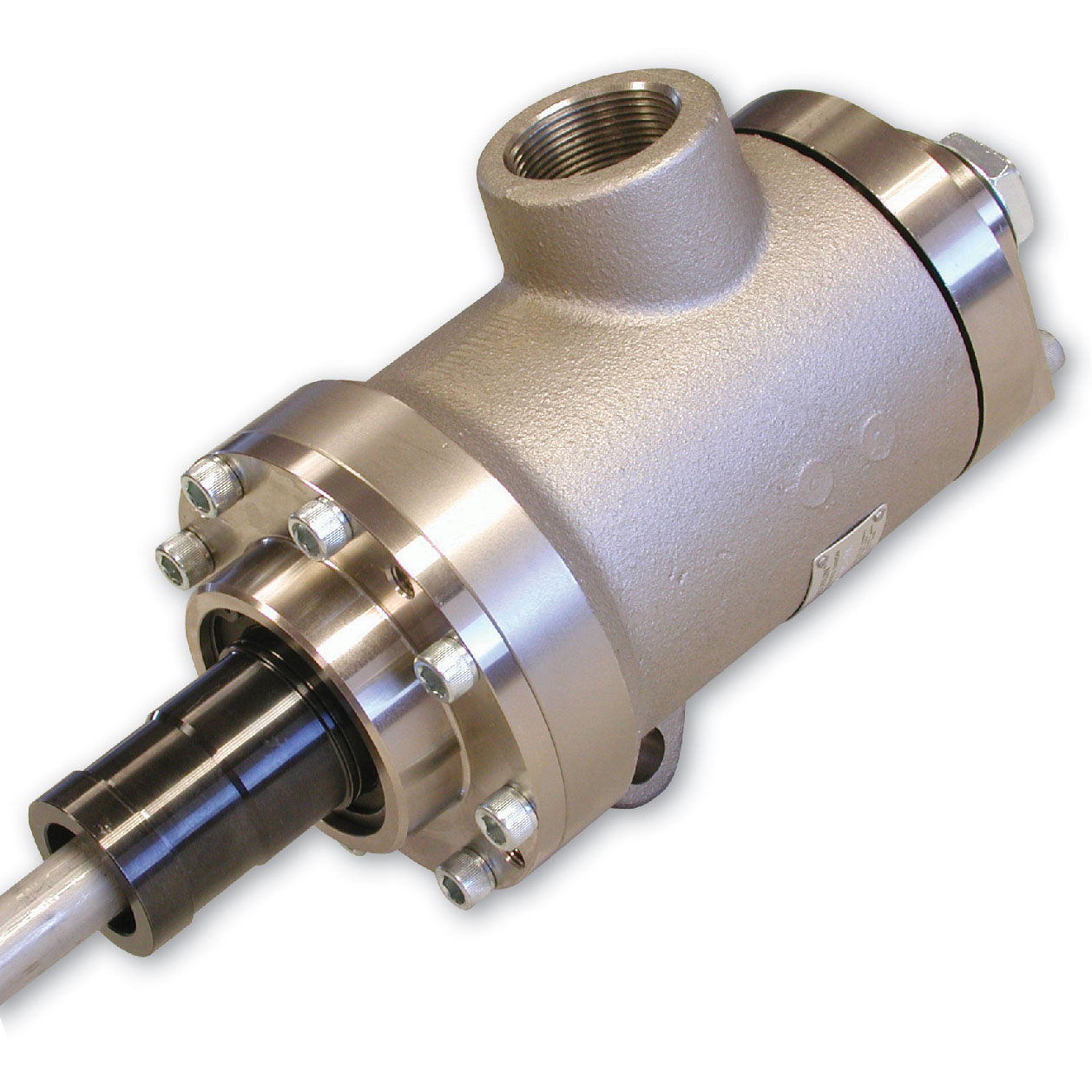

High Pressure Steam Joint C15D-004-02-3A DEUBLIN

Monoflow and duoflow design
Self-supported rotating union
Seals and bearings made of special Carbon Graphite
Convex seal ring better suited to handle mechanical and thermal shock
External mechanism to adjust siphon pipe through end cap
Nickel-plated front and rear end cap
Nickel-plated ductile iron housing
Stainless steel spring
Heavy duty steel rotor design
Dual bearings for extended service life

Thông số kỹ thuật :

Media : Steam

Rotor Connection : Quick Connect, 45.18 mm pilot

Housing Connection : 1-1/2"-11.5 NPT

Steam Max. Pressure : 17.2 bar

Steam Max. Temperature : 232 °C

Kích Thước :

A : Quick Connect

B : 1-1/2"-11.5 NPT

C : 136 mm

D1 : 340 mm

E : 88 mm

F : 13.59 mm

G : 47.5 mm

I : 45.18 mm

J : 200 mm

K : 3/4"-14 NPT

R : 261 mm

S3 : Threaded

X : 22.8 mm
