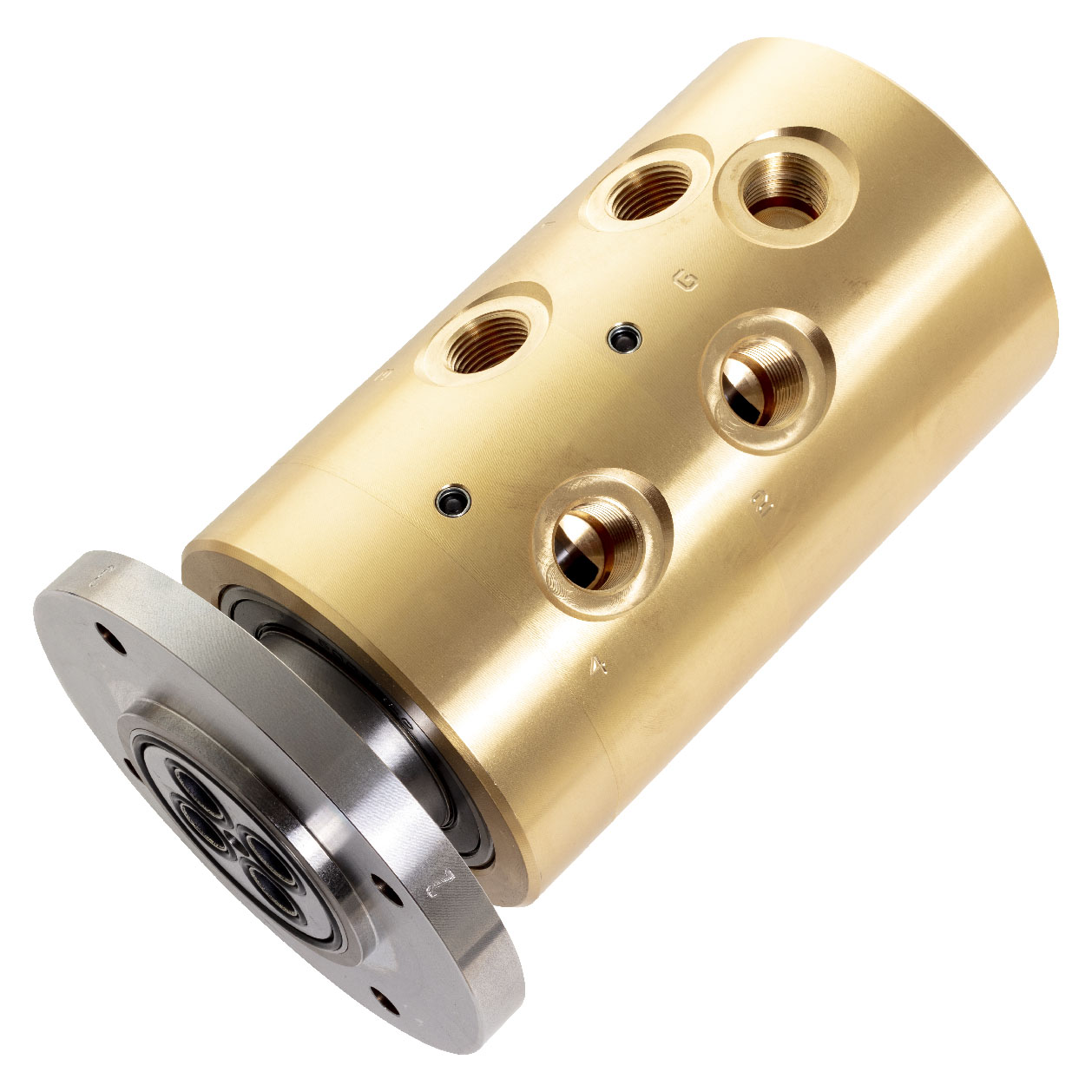

ROTARY 1379-860 DEUBLIN

UNION 1379-860 DEUBLIN

Four independent passages for applications such as clamping and unclamping, work piece or tool sensing, and spindle cooling
Vent between passages 2 and 3 allows use of two different media without cross contamination. For example, water in passages 1 and 2 and hydraulic oil in passages 3 and 4
Stainless steel and brass components resist corrosion
Hardened chrome sealing surface and elastomer-energized seals
Dual, widely spaced ball bearings absorb large side loads
5-passage models available

Thông số kỹ thuật :

Media : Vacuum, Hydraulic Oil, Air

Rotor Connection : 110 mm Flange, 60 mm pilot

Housing Connection : G 3/8"-19

Air Max. Pressure : 10 bar

Air Max. Temperature : 80 °C

Hydraulic Oil Max. Pressure : 60 bar

Hydraulic Oil Max. Temperature : 80 °C

Vacuum Max. Pressure : -0.95 bar

Vacuum Max. Temperature : 80 °C

Kích thước :

A : 110 mm

B : G 3/8"-19

C : 88 mm

D1 : 176 mm

E : 30 mm

F : 3.4 mm

G : 6.2 mm

I : 60 mm

J : 146 mm

K : G 3/8"-19

P : Non-Threaded

X : 3.4 mm
