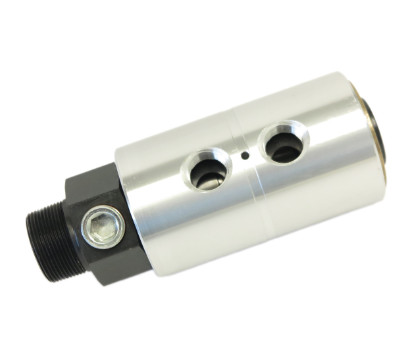

Khớp Nối 1890-500 DEUBLIN

1890-500 DEUBLIN

Duoflow design for low-speed air, hydraulic, and brake fluid applications
Self-supported rotating union
Composite bearing
Vent holes between passages
Special seals
Hardened sealing surface
Aluminum housing and steel rotor
Triple-passage tandem model available

Thông số kỹ thuật :

Media : Hydraulic Oil, Air
Rotor Connection :1-1/2"-11.5 NPT RH
Housing Connection : 3/4"-14 NPT
Air Max. Flow : 300 CFM
Air Max. Pressure : 150 psi
Air Max. Temperature : 250 °F
Hydraulic Oil Max. Pressure : 3000 psi
Hydraulic Oil Max. Temperature : 250 °F

A : 1-1/2"-11.5 NPT RH

B : 3/4"-14 NPT

C : 3.476"

D1 : 8.874"

E : 2.622"

F : 1.181"

G : 0.811"

H : 2.559"

J : 4.094"

K : 3/4"-14 NPT

P : Non-Threaded

R : 6.142"

S3 : Threaded
