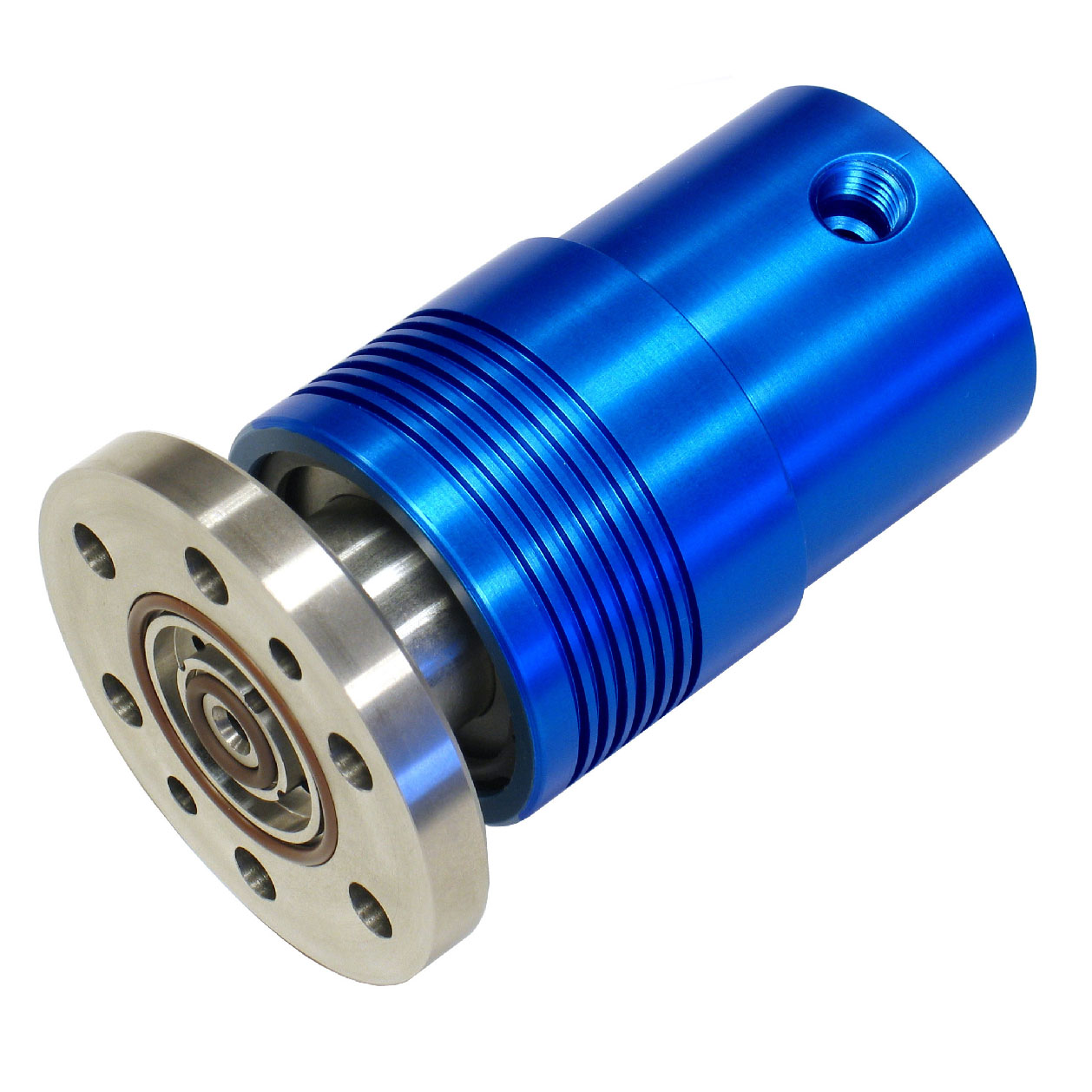

KHỚP NỐI 2620-040-157 DEUBLIN

UNION 2620-040-157 DEUBLIN

Two independent passages for applications such as clamping and unclamping
Balanced mechanical seals for each passage provide long life and reduced torque even at maximum pressure
Closed seals provide continuous containment of media
Dual precision ball bearings for smooth operation
Labyrinth system to protect ball bearings
Mounting options are compatible with Deublin 2520 or 1579 series unions

Thông số kỹ thuật :

Media : Hydraulic Oil, Hydraulic Oil

Rotor Connection : 3.188" Flange, 3.19" pilot

Housing Connection : 1/4"-18 NPT

Hydraulic Oil Max. Flow : 18.2 GPM

Hydraulic Oil Max. Pressure : 1450 psi

Hydraulic Oil Max. Temperature : 160 °F

Hydraulic Oil Max. Flow : 18.2 GPM

Hydraulic Oil Max. Pressure : 435 psi

Hydraulic Oil Max. Temperature : 160 °F

Kích thước :

A : 3.188"

B : 1/4"-18 NPT

C : 2.362"

D1 : 4.961"

E : 1.063"

G : 0.236"

I : 3.19"

J : 3.583"

K : 1/4"-18 NPT

P : 2x 1/8"

X : 0.433"
