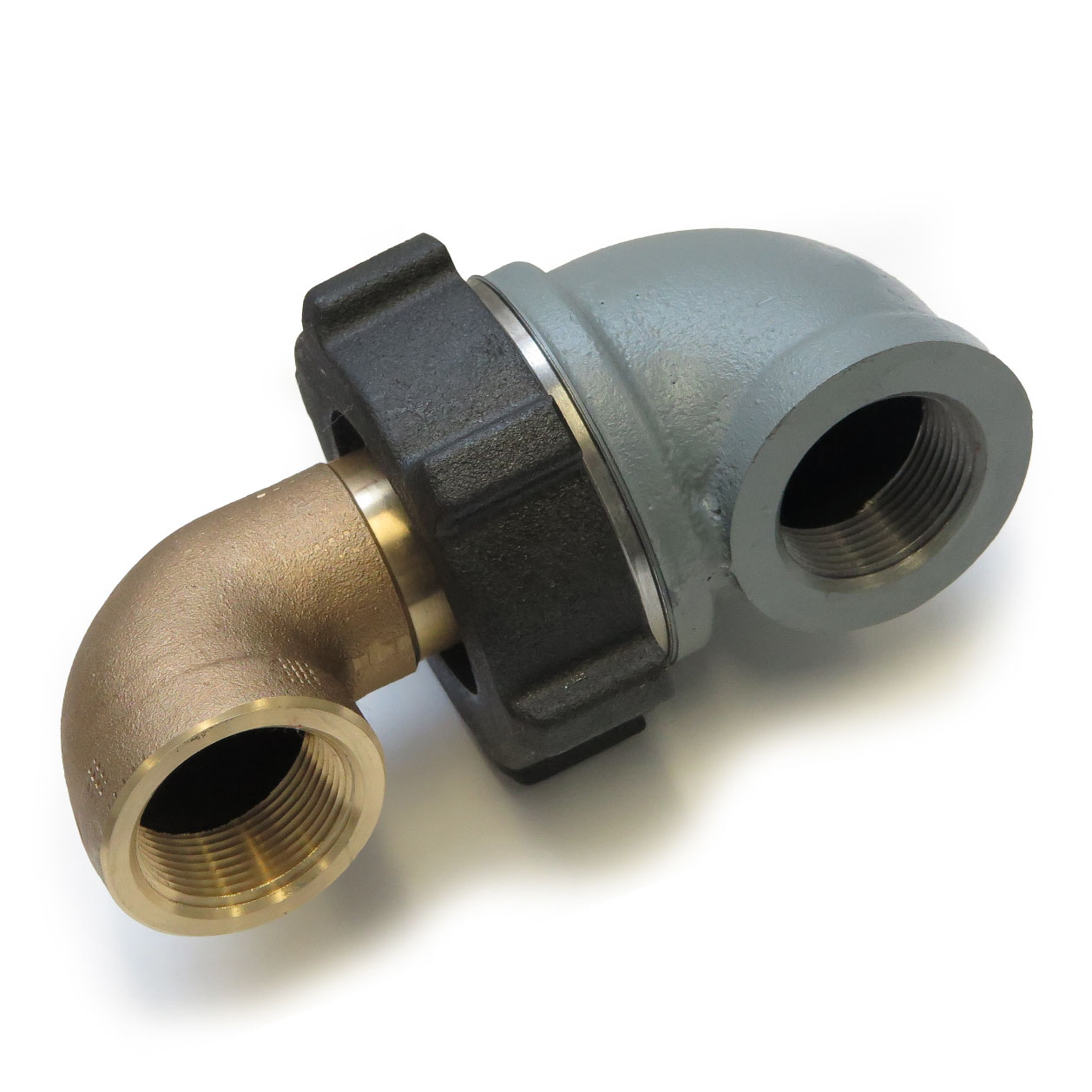

Swivel BE-32010-20-24

Handles 360° rotary and 10° angular movement between machinery and pipe work.
Built for hot and cold water, steam, alternating steam and water, and heat transfer fluids.
10° angular flexibility permits positive positioning of lines.
Outperforms and outlasts flexible hose with lower pressure drops.
Faster and easier piping installation. Fabrications simplified.
Eliminate the hazards of leaking pipe connections or catastrophic hose failures.
Dog-leg arrangements accommodate hinged and lifting motions of presses.

Thông số kỹ thuật :

Media : Steam, Hot Oil

Rotor Connection : 1-1/4"-11.5 NPT RH

Housing Connection : 1-1/4"-11.5 NPT

Hot Oil Max. Pressure : 350 psi

Hot Oil Max. Temperature : 400 °F

Steam Max. Pressure : 250 psi

Steam Max. Temperature : 400 °F

Kích Thước :

A : 1-1/4"-11.5 NPT RH

B : 1-1/4"-11.5 NPT

D1 : 7.343"

J : 3.189"

M : 1.811"

N : 5.059"
