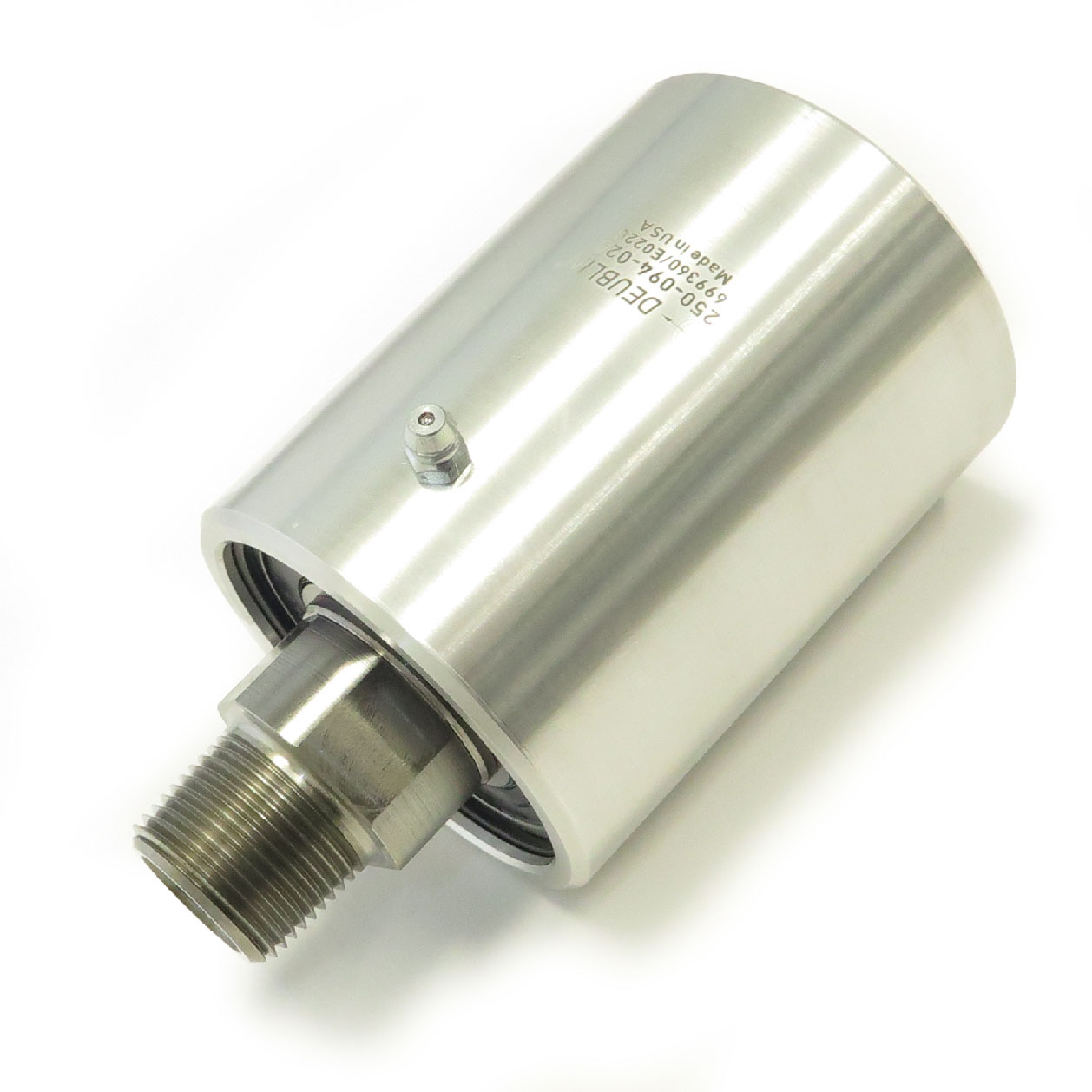

250-094-020 DEUBLIN

250-094-020 Deublin

Monoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seals
Seal combinations: Carbon Graphite/Hardened Tool Steel or Carbon Graphite/Silicon Carbide
Felt oiler in seal cavity for air service
Oiler for relubrication (3 to 5 drops/month)
Low torque design
Weight-optimized design
Aluminum housing; stainless steel or carbon steel rotor, depending on model
Ball bearings lubricated for life

Thông số kỹ thuật :

Media : Vacuum, Hydraulic Oil, Air

Rotor Connection : 3/4"-14 NPT RH

Housing Connection : 3/4"-14 NPT

Air Max. Flow : 8497 l/min

Air Max. Pressure : 10 bar

Air Max. Temperature : 121 °C

Hydraulic Oil Max. Flow : 52.8 l/min

Hydraulic Oil Max. Pressure : 69 bar

Hydraulic Oil Max. Temperature : 121 °C

Vacuum Max. Pressure : -0.95 bar

Vacuum Max. Temperature : 121 °C

Kích Thước :

A : 3/4"-14 NPT RH

B : 3/4"-14 NPT

C : 73.03 mm

D1 : 130 mm

E : 36.49 mm

F : 22 mm

G : 17.4 mm

H : 32 mm

J : 103 mm
