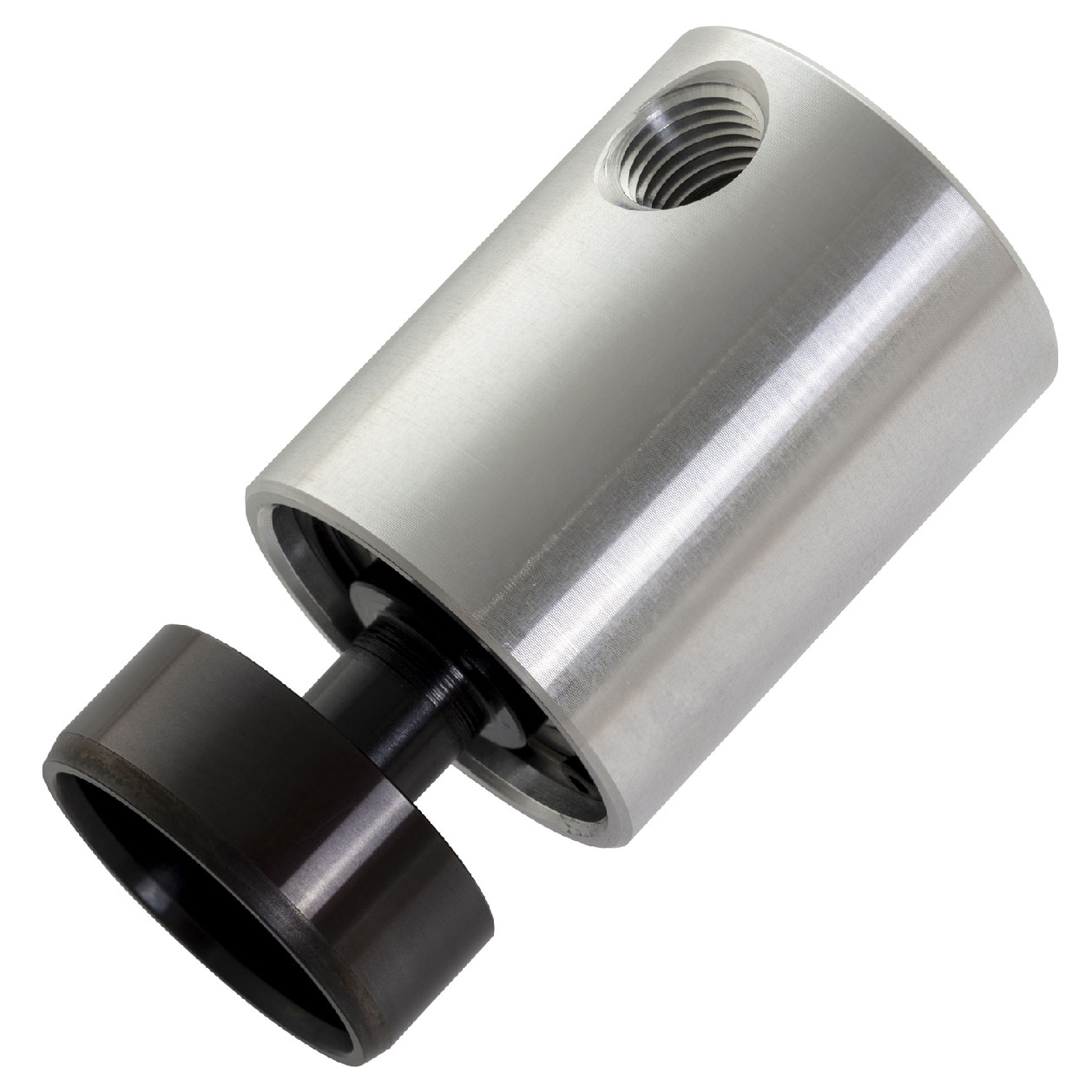

Union, 35 mm flange, 30 mm pilot, 1/4" NPT  1102-070-166

Monoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seals
Seal combinations: Carbon Graphite/Hardened Tool Steel or Carbon Graphite/Silicon Carbide
Felt oiler in seal cavity for air service
Oiler for relubrication (3 to 5 drops/month)
Low torque design
Weight-optimized design
Aluminum housing; stainless steel or carbon steel rotor, depending on model
Ball bearings lubricated for life

Thông số kỹ thuật : 1102-070-166

Media : Vacuum, Hydraulic Oil, Air

Rotor Connection :1.378" Flange, 1.182" pilot

Housing Connection : 1/4"-18 NPT

Air Max. Flow : 40 CFM

Air Max. Pressure : 150 psi

Air Max. Temperature : 250 °F

Hydraulic Oil Max. Flow : 4 GPM

Hydraulic Oil Max. Pressure : 1000 psi

Hydraulic Oil Max. Temperature : 250 °F

Vacuum Max. Pressure : -13.75 psi

Vacuum Max. Temperature : 250 °F

Kích Thước :

A : 1.378"

B : 1/4"-18 NPT

C : 1.614"

D1 : 3.091"

E : 1.024"

F : 0.315"

G : 0.252"

I : 1.182"

J : 2.323"

X : 0.315"
