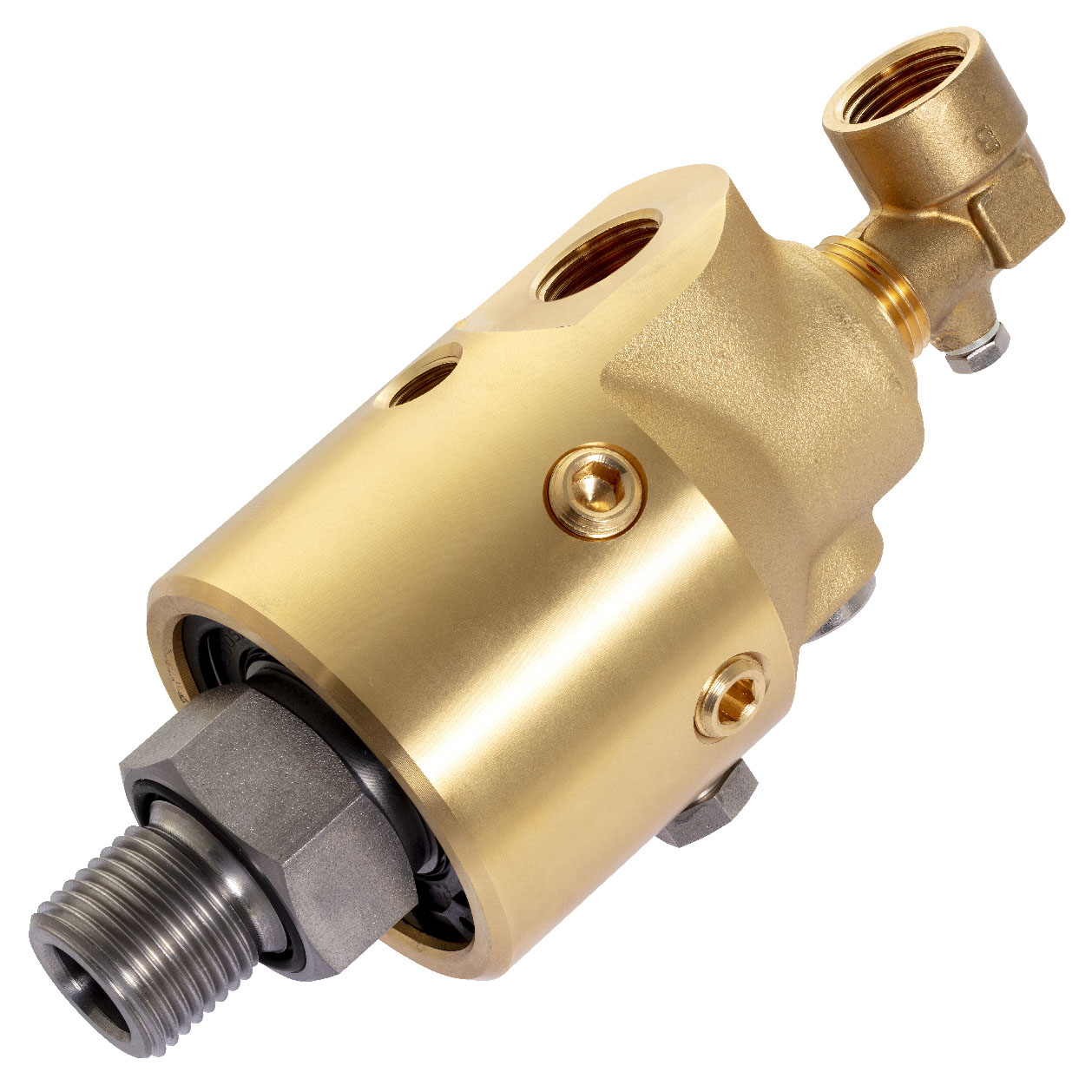

UNION 157-326-342168

Monoflow and duoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seals
Keyed rotor seal
Easy and quick replacement of sealing components
Ball bearings lubricated for life
E.L.S. (Extended Life Service) seal combination for poor water quality
3 vent holes
Forged brass housing and stainless steel rotor
Special options include threaded vent holes

Thông số kỹ thuật : 157-326-342168

Media : Water

Rotor Connection : G 1/2"-14 RH

Housing Connection : G 3/8"-19

Water Max. Flow : 7.1 GPM

Water Max. Pressure : 150 psi

Water Max. Temperature : 195 °F

Kích thước :

A : G 1/2"-14 RH

B : G 3/8"-19

C : 2.252"

D1 : 5.236"

D2 : 5.906"

E : 1.378"

F : 0.748"

G : 0.5"

H : 1.181"

J :3.051"

K :3/8"-18 NPT

M : 0.709"

N : 1.693"

O : G 3/8"-19 RH

P : G 1/8"-28

R : 5.236"

S : 0.925"

S2 : 0.394"

S3 :Fixed
