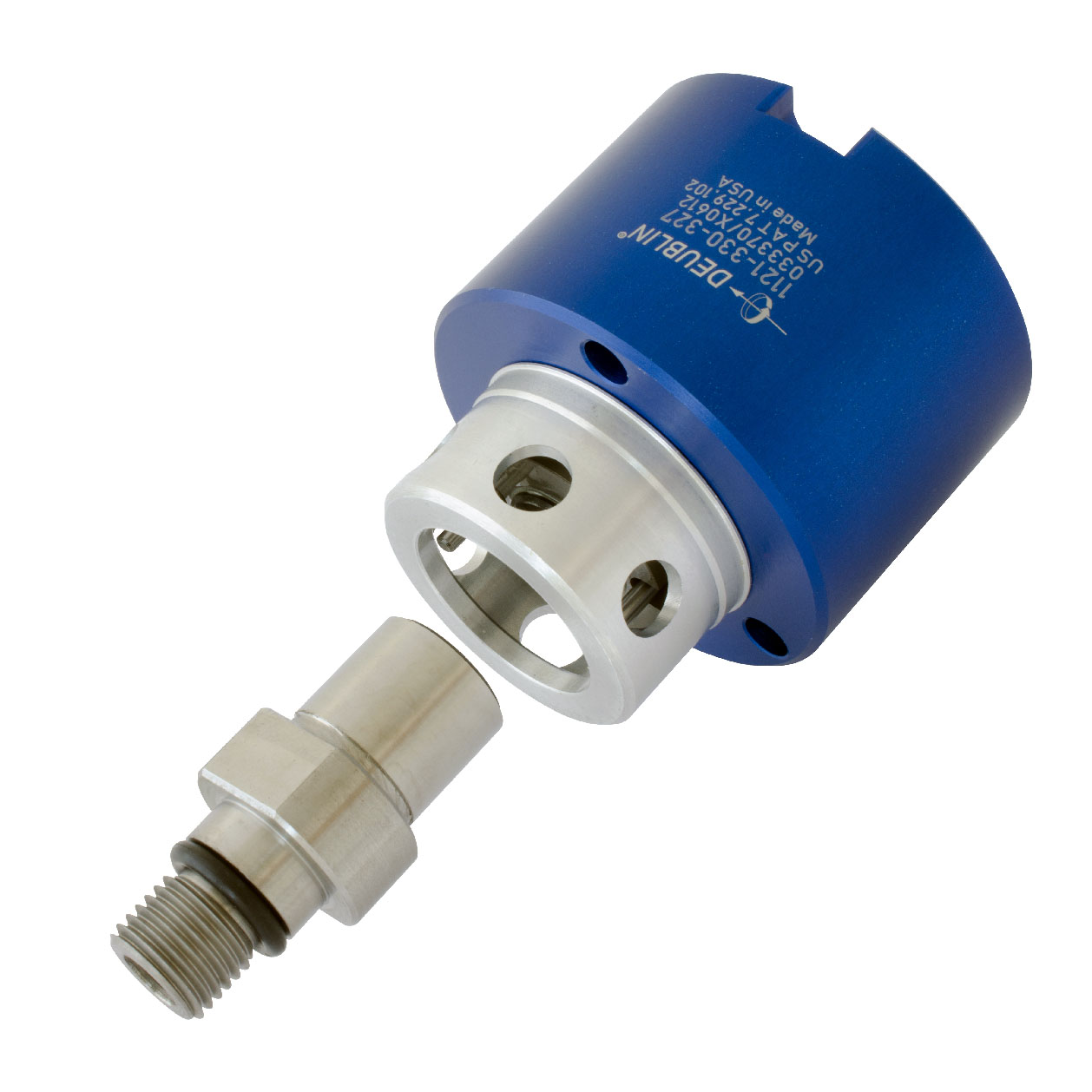

1121-330-327 DEUBLIN

Single passage for coolant or MQL
Pop-Off™ technology allows unlimited dry running without media pressure
Ultra-short 0.1 mm pop-off stroke restricts drainage of residual coolant during tool change
Full-flow design has no obstructions to trap swarf or debris
Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
Anodized aluminum housing resists corrosion

Thông số kỹ thuật :

Media : MQL, Coolant

Rotor Connection : M12x1.25 LH, 0.551" pilot

Housing Connection : 3/8"-19 PT

Coolant Max. Flow : 10.9 GPM

Coolant Max. Pressure : 2030 psi

Coolant Max. Temperature : 160 °F

MQL Max. Flow : 72.1 CFM

MQL Max. Pressure : 150 psi

MQL Max. Temperature : 160 °F

Kích thước :

A : M12x1.25 LH

B : 3/8"-19 PT

C : 2.126"

D1 : 3.724"

E : 1.476"

F : 0.669"

G : 0.236"

H : 0.709"

I : 0.551"

J : 2.386"

K : 3/8"-19 PT

P : Non-Threaded

X : 0.197"
